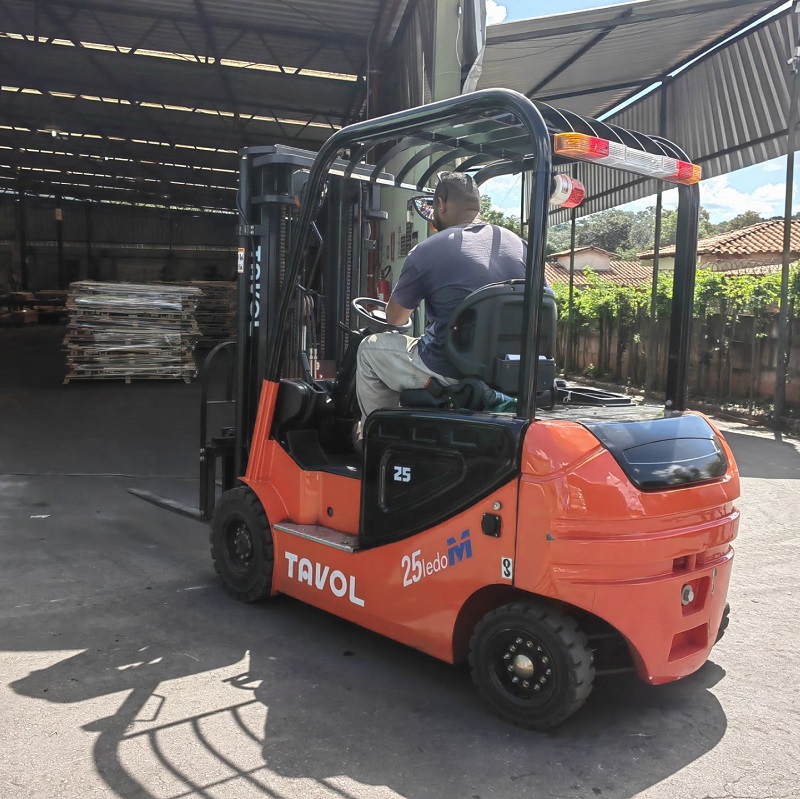

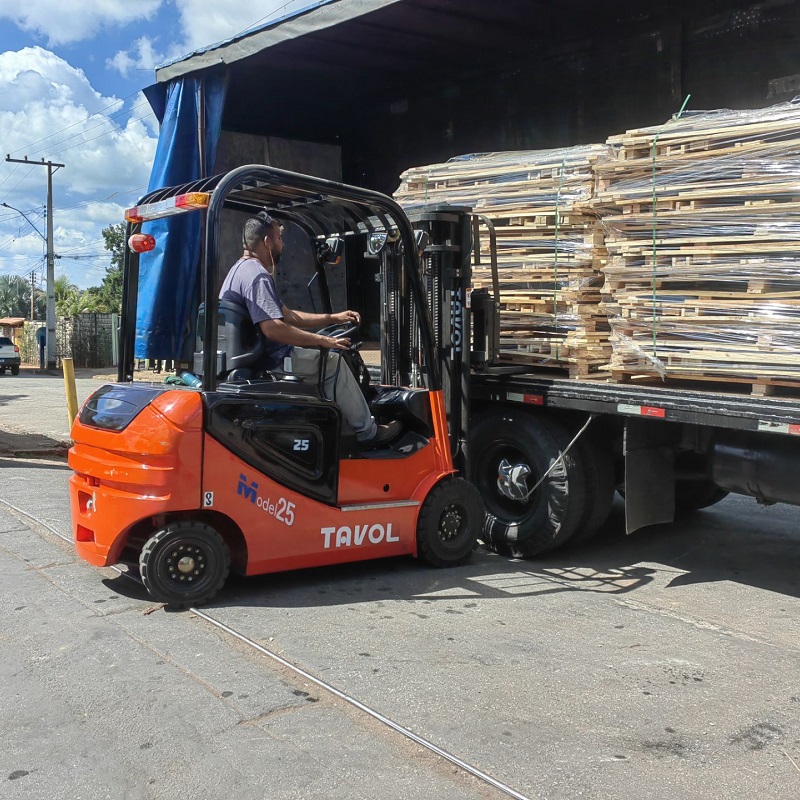

Solid Tire Electric Forklift
Tavol electric forklift with more than 20 years manufacturing and export experience.
Lithium Battery with 5 years long warranty,with longer lifespan and fast charging.
Standard battery after full charging can work continuously for 5-6 hours
Battery capacity can customized according to your working time.
Fast delivery time(5-7 working days),accept OEM and ODM service
Compact design for tight spaces.
Suitable for diverse environments(food processing, pharmaceuticals, electronics)due to clean operation
Meet stringent emissions standards(EPA,EU Stage V)
Product Details
3 tons 2 tons of electric forklift with accessories, electric mini forklift. Quiet,environmentally friendly means of handling a wide range of unit loads including pallets,pallet boxes and stillages,giving you a comprehensive choice for any application.
We are a professional manufacturer that can produce rated loading,capacity 0.5 to 10 tons of electric forklifts and provide customized services according to customer needs.
Technical Parameters
Model | FB25 | FB30 |
Rated Loading Capacity(kg) | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 465 | 475 |
Max Driving Speed (Empty/Full load)(km/h) | 15/16 | 15/16 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2710 | 2710 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 |
Front Wheel Tyre | 28x9-15-12PR | 25x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 4600 |
Standard Fork Length(mm) | 1220 | 1220 |
Battery(optional) | 76.8V/205AH(optional) | 76.8V/205AH(optional) |
Charger | 60A | 60A |
Charging time | 4-6H | 4-6H |
Steering System | Hydraulic | Hydraulic |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;
6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
| 2 Stages Duplex Mast | 2 Stages/Duplex Full Free Mast | 3 Stages Triplex Full Free Mast |
| Fork Side Shifter | Side shifter and Fork Positioner |
Tavol Forklifts Service Overseas
| 4 Ton Diesel Forklift in Germany | 3 Ton Diesel Forklift in Indonesia | 5 Ton Diesel Forklift in Chile |
| 2.5/3.5Tons Forklifts in Brazil | 2.5 Ton Cabin Forklift in Armenia | 8 Ton Diesel Forklift in Colombia |
TAVOL Factory
Tavol Forklift factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting,
Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture 2ton-10ton Diesel Forklifts ,1ton -5ton
Electric Forklifts, 2ton to 4ton Dual LPG Forklift,Off-Road Forklift,Electric Stacker Etc.
