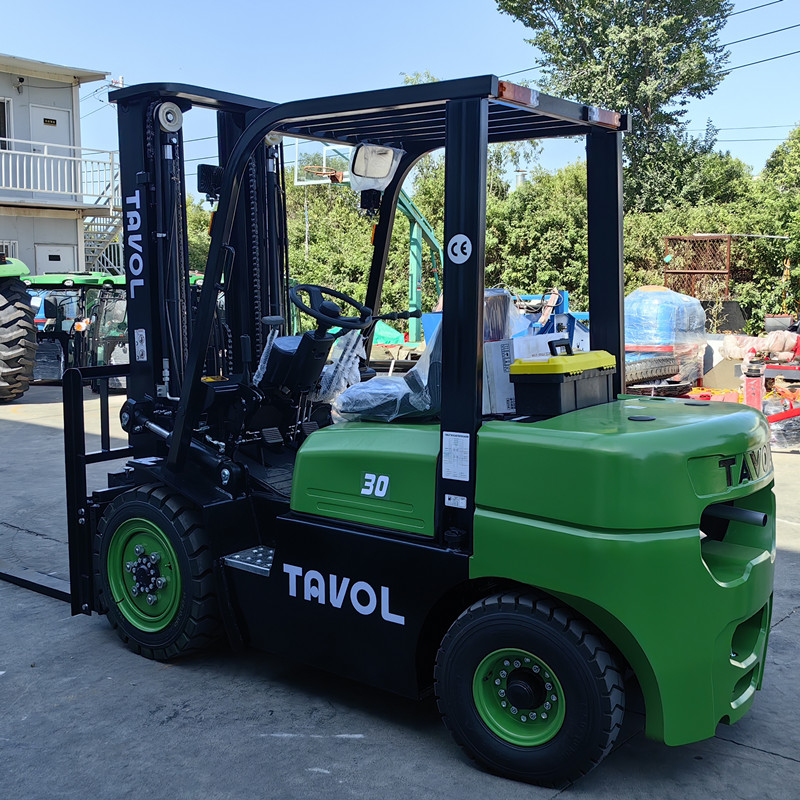

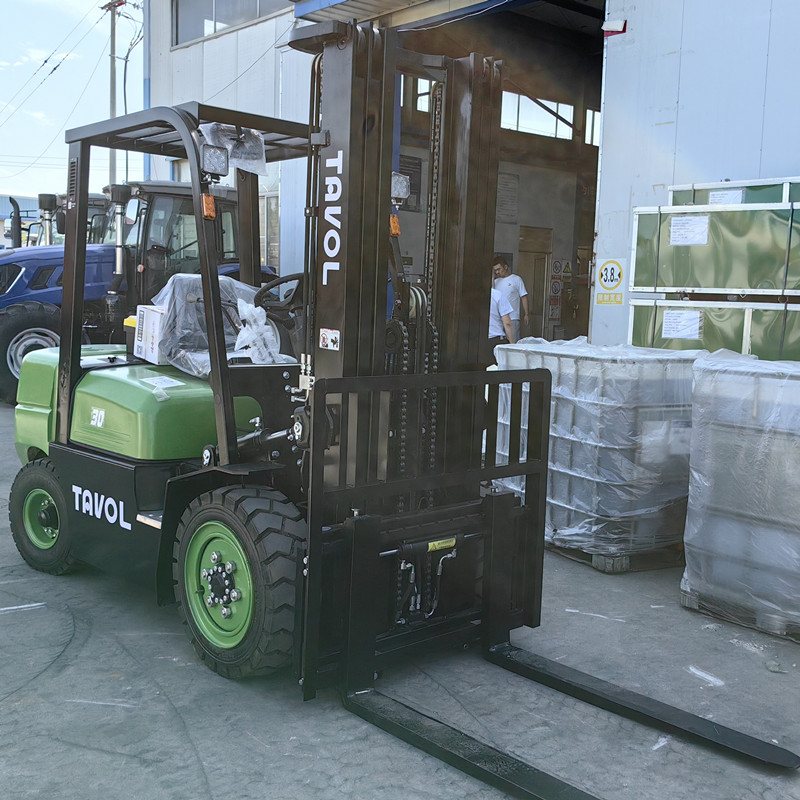

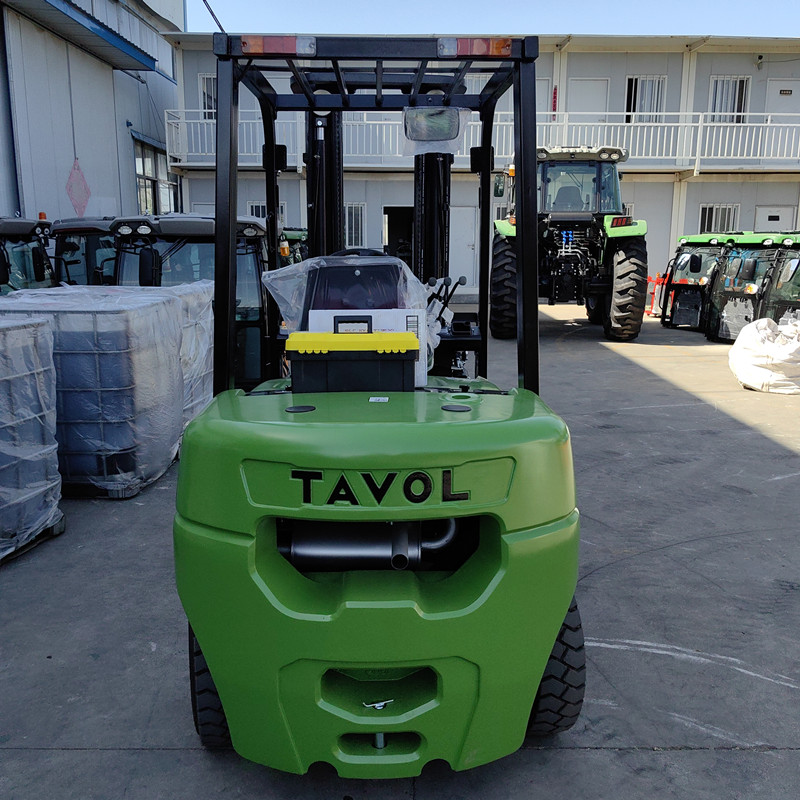

3 Ton Diesel Forklifts
* Well-known domestic and foreign engine brands, powerful, low emissions, low fuel consumption.
* Ergonomic joystick and pedal layout, more convenient and comfortable operation.
* High-strength integral welded frame. The frame, mast and fork frame are made of high-strength materials, and all parts are made in-house by our factory to ensure long-term durability.
* Tavol forklifts have a wide range of models, power options and functions, which can be competent for almost any lifting and material handling tasks.
* Tavol offers customization options to meet specific customer needs. This includes custom logos, custom packaging, and installation of additional features or accessories according to customer needs.

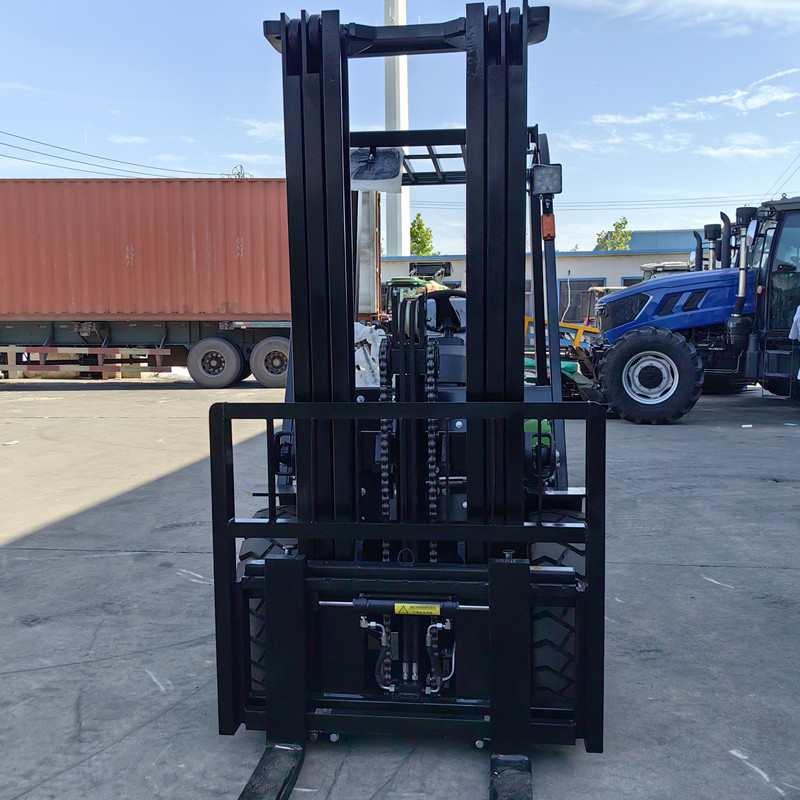

Brand New 3 Ton Diesel Forklift for Warehouse Price
TAVOL Forklift Advantage:
* Tavol Diesel Forklifts Improve material operation efficiency, reduce personnel labor intensity, and improve working conditions; save labor and improve labor productivity; according to statistics: a forklift can replace the physical labor of 8 to 15 loading and unloading workers.
*3Ton forklifts diesel forklift Shorten operating time, speed up material turnover, and improve production efficiency.
* 3t capacity forklifts make full use of the space. Saves warehouse space. Using a forklift, goods can be stacked higher and the warehouse volume utilization rate can be increased several times.
Model | CPC30/ CPCD30 | |
Rated Loading Capacity(kg) | 3200 | |
Load Center Distance(mm) | 500 | |
Max Lifting Speed (Full load)(mm/h) | 475 | |
Max Driving Speed (Empty/Full load)(km/h) | 18/20 | |
Fork Lifting Height(mm) | 3000 | |
Mast Tilt Angle (Forward and Backward) | 6°/12° | |
Min. Turning Radius(mm) | 2530 | |
Min. Ground Clearance(mm) | 135 | |
Length (Including Fork)(mm) | 3970 | |
Width(mm) | 1230 | |
Height From Ground to Overhead Guard(mm) | 2105 | |
Front Overhang(mm) | 465 | |
Wheel Base(mm) | 1775 | |
Front Wheel Track(mm) | 1000 | |
Rear Wheel Track(mm) | 970 | |
Front Wheel Tyre | 28*9-15 | |
Rear Wheel Tyre | 6.50-10 | |
Self Weight(kg) | 4250/4290 | |
Standard Fork Length(mm) | 1220 | |
Engine Rated Power(kw) | 36.8 | |
Engine Speed At Rated Power (rmp) | 2500 | |
Engine Maximum Torque(Nm) | 165 | |
Engine Speed At Maximum Torque(rpm) | 1600-1800 | |
Variable speed form | Mechanical/ Hydraulic | |

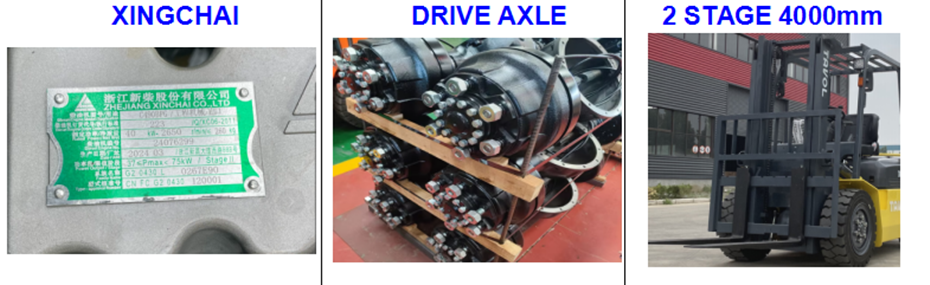

More Optional:
1.Engine: Standard China Quanchai/Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others;
2.Transmission: Mechanical and Automatic transmission can be chosen.
3.Mast: Standard 2-stages 3000mm mast,optional 3-stages 4500mm -6000mm full free mast and others;
4.Fork: Standard 1220mm fork,optional 1370mm,1520mm,1670mm and 1820mm forks;
5.Attachment: side shifter,Fork shoes,fork positioner,360 degree rotator,bale clamp,paper roll clamp and other attachments are available;
6.Tires: Standard pneumatic tire,optional solid tire,non-mark tire.

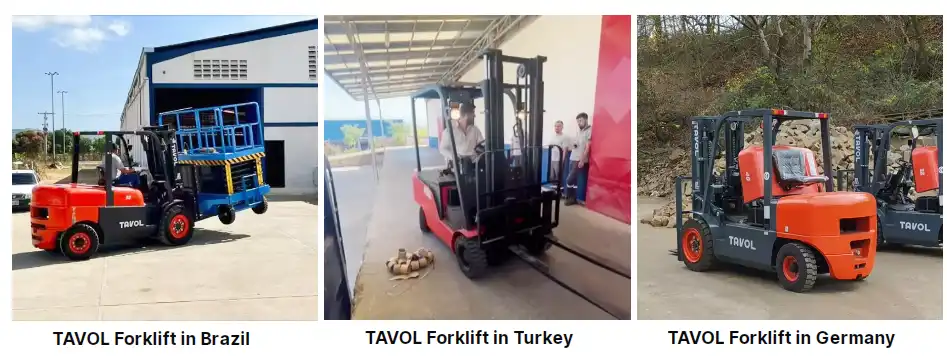

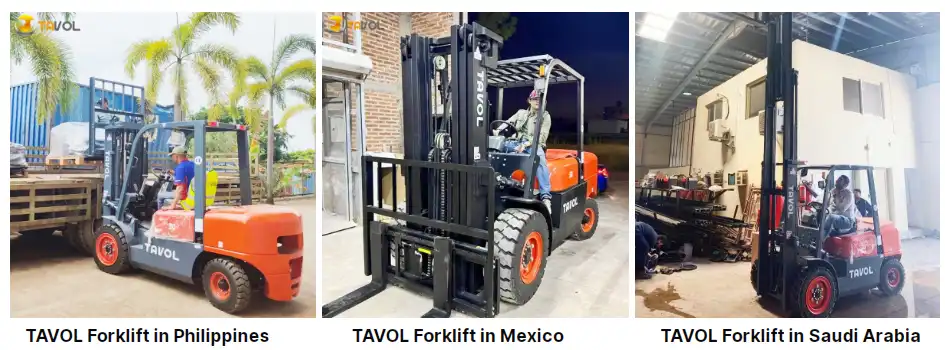

Tavol Forklift Clients Feedback:
Contact us
Ms.Alina Zhao,Phone:+86 13561785163,E-mail：sales55@tavolgroup.com
