76.8V/80V Lithium Battery 1-5tons
Tavol electric forklift with more than 20 years manufacturing and export experience.
Lithium Battery with 5 years long warranty,with longer lifespan and fast charging.
Standard battery after full charging can work continuously for 5-6 hours
Battery capacity can customized according to your working time.
Fast delivery time(5-7 working days),accept OEM and ODM service
Compact design for tight spaces.
Suitable for diverse environments(food processing, pharmaceuticals, electronics)due to clean operation
Meet stringent emissions standards(EPA,EU Stage V)
Product Details

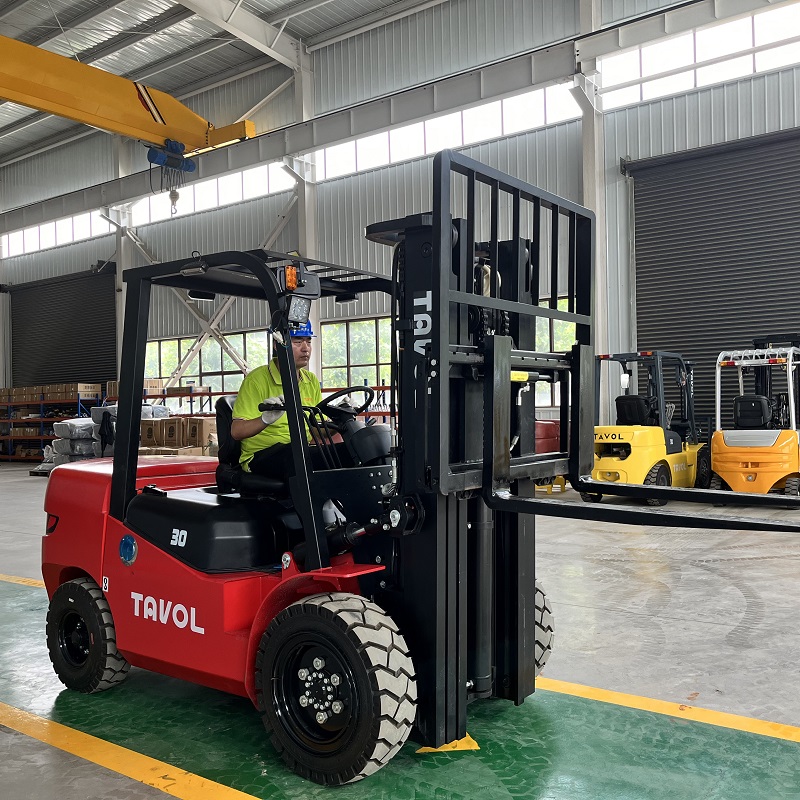

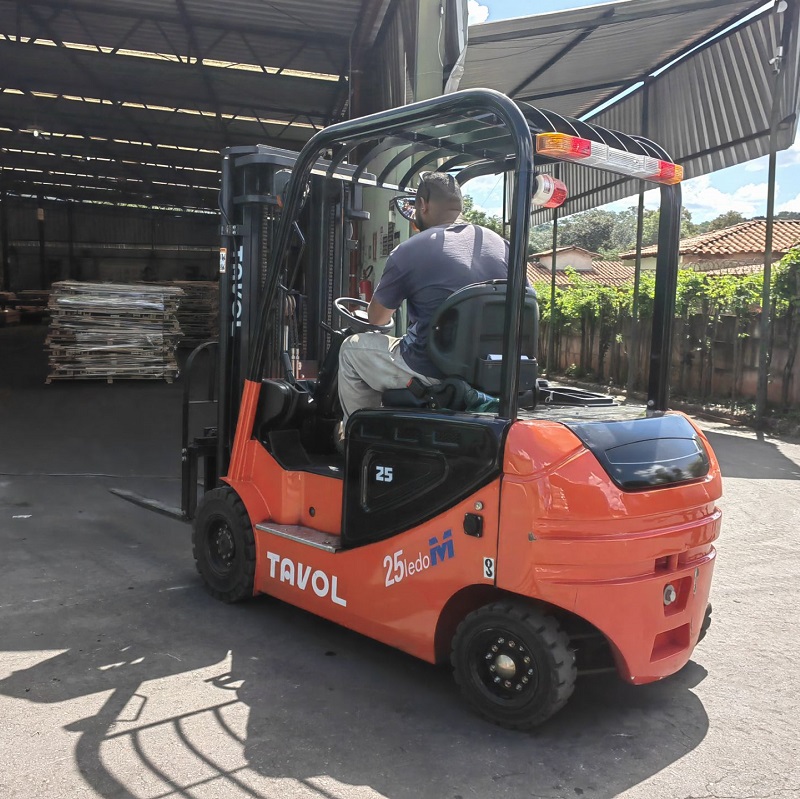

2.5tons 3 tons of electric forklift with accessories, lithium forklift. Quiet,environmentally friendly means of handling a wide range of unit loads
including pallets,pallet boxes and stillages,giving you a comprehensive choice for any application.
1. World famous controller, to achieve high precision walking and upgrade control, high working effect
2. Have CE&ISO certificate
3. Large capacity battery, strong endurance 4
4. Dynamic load-sensitive priority steering system for faster steering response and smoother ride.
5. Advanced remote drive unit, compact structure, lower center of gravity, more reasonable layout, more stable drive
Technical Parameters
Model | FB30 | FB35 |
Rated Loading Capacity(kg) | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 465 | 475 |
Max Driving Speed (Empty/Full load)(km/h) | 15/16 | 15/16 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2710 | 2710 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 |
Front Wheel Tyre | 28x9-15-12PR | 25x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 4600 |
Standard Fork Length(mm) | 1220 | 1220 |
Battery(optional) | 76.8V/205AH(optional) | 76.8V/205AH(optional) |
Charger | 60A | 60A |
Charging time | 4-6H | 4-6H |
Steering System | Hydraulic | Hydraulic |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;
6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
| 2 Stages Duplex Mast | 2 Stages/Duplex Full Free Mast | 3 Stages Triplex Full Free Mast |
| Fork Side Shifter | Side shifter and Fork Positioner |

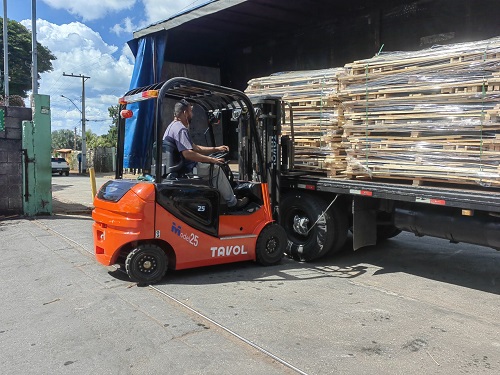

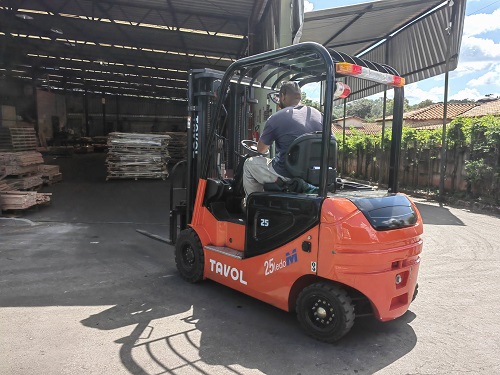

Tavol Forklifts Service Overseas
| 4 Ton Diesel Forklift in Germany | 3 Ton Diesel Forklift in Indonesia | 5 Ton Diesel Forklift in Chile |
| 2.5/3.5Tons Forklifts in Brazil | 2.5 Ton Cabin Forklift in Armenia | 8 Ton Diesel Forklift in Colombia |
TAVOL Factory
Tavol Forklift factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting,
Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture 2ton-10ton Diesel Forklifts ,1ton -5ton
Electric Forklifts, 2ton to 4ton Dual LPG Forklift,Off-Road Forklift,Electric Stacker Etc.
