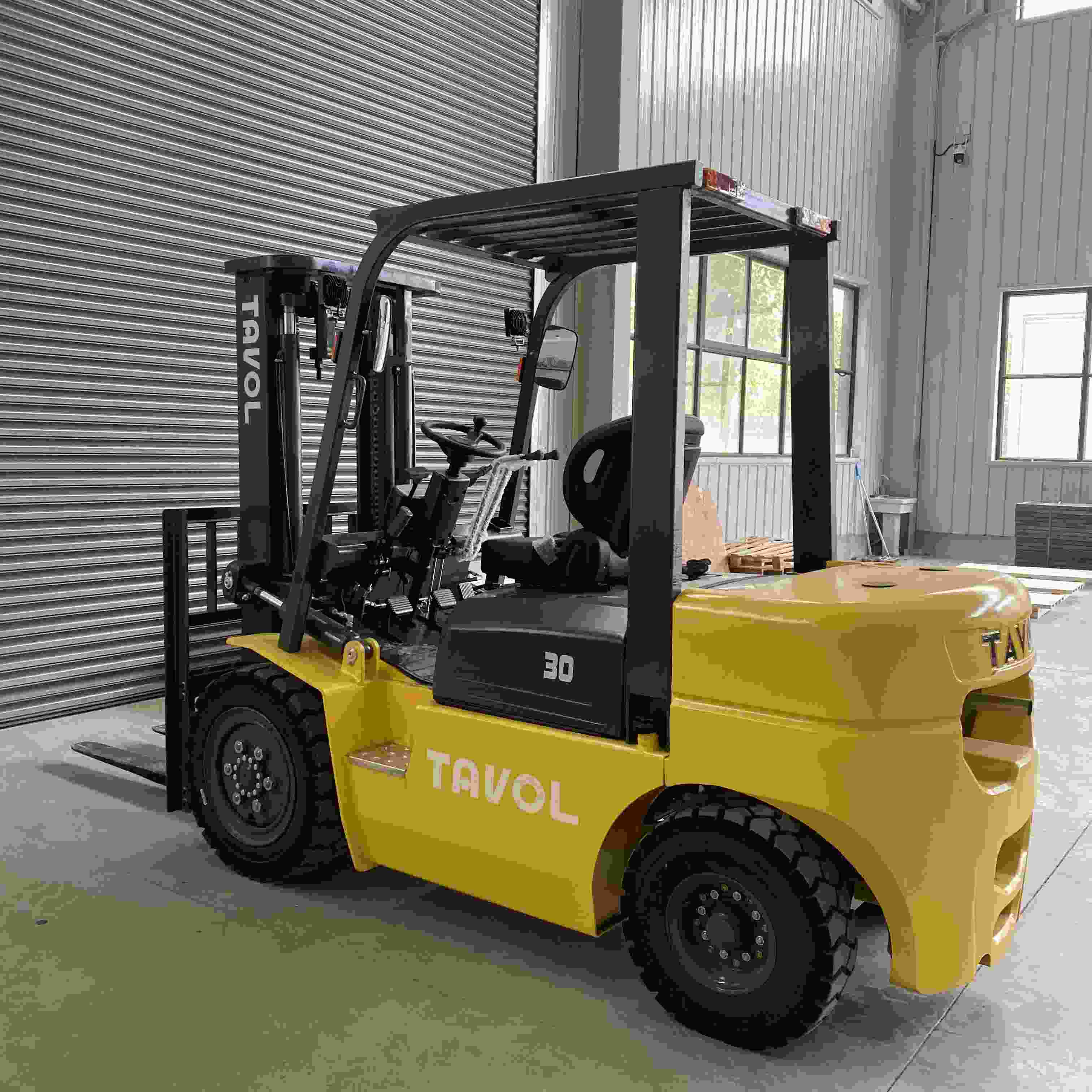

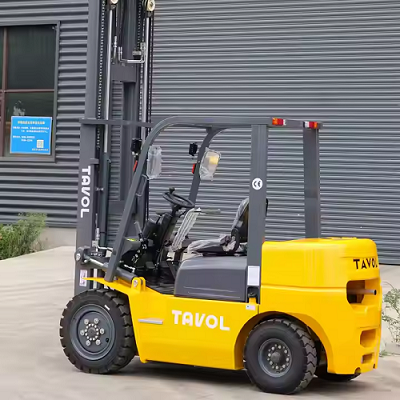

Forklift Trucks with Isuzu Engine
* Well-known domestic and foreign engine brands, powerful, low emissions, low fuel consumption.
* Ergonomic joystick and pedal layout, more convenient and comfortable operation.
* High-strength integral welded frame. The frame, mast and fork frame are made of high-strength materials, and all parts are made in-house by our factory to ensure long-term durability.
* Tavol forklifts have a wide range of models, power options and functions, which can be competent for almost any lifting and material handling tasks.
* Tavol offers customization options to meet specific customer needs. This includes custom logos, custom packaging, and installation of additional features or accessories according to customer needs.
Product Description
Diesel forklifts are a type of material handling equipment powered by internal combustion engines, and are widely used in ports, warehouses, logistics centers, and other scenarios. Their core power source is a diesel engine, which has the characteristics of high torque, strong durability, and good fuel economy. Diesel forklifts are suitable for heavy loads and long distance operations.
* Improve material operation efficiency, reduce personnel labor intensity, and improve working conditions; save labor and improve labor productivity; according to statistics: a forklift can replace the physical labor of 8 to 15 loading and unloading workers.
*Shorten operating time, speed up material turnover, and improve production efficiency.
* Make full use of the space. Saves warehouse space. Using a forklift, goods can be stacked higher and the warehouse volume utilization rate can be increased several times.
OPTIONAL
1.Xinchai engine,optional Japan lsuzu, Mitsubishi engine and others.
2.Mechanical and Automatic transmission can be choosen.
3.Standard 2-stages 3000mm mast, optional 3-stages 4500mm -7500mm mast;
4.Standard 1220mmfork, optional 1370mm,1520mm, 1670mm and1820mm forks;
5.Optional side shifter, fork positioner and other attachments;6.Standard pneumatic tire, optional solid tire.
Chinese Xinchai Engine | Japanese Isuzu Engine | Mitsubishi Engine |
2 stages mast | 2 stages full free mast | 3 stages full free mast |
CLIENT FEEDBACK
We also provide :
2ton 2.5ton 3ton 3.5ton 4ton 4.5ton 5ton 7ton 8ton 10ton Diesel Forklift ;
1ton 1.5ton 2ton 2.5ton 3ton 3.5ton Electric Forklift
2ton 2.5ton 3ton and 3.5ton 4ton 5ton LPG Dual Fuel Forklift
1. Professional manufacturer since from 1998
2. Quality first, profit second, 100% qualified
3. Fast delivery time:5-7 days loading in container
4. Accept customization and OEM,ODM service
Product Parameters
Model | CPC20/ CPCD20 | CPC30/ CPCD30 | CPC40/ CPCD40 |
Rated Loading Capacity(kg) | 2000 | 3200 | 4000 |
Load Center Distance(mm) | 500 | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 400 | 475 | 390 |
Max Driving Speed (Empty/Full load)(km/h) | 17/19 | 18/20 | 18/20 |
Fork Lifting Height(mm) | 3000 | 3000 | 3000 |
Mast Tilt Angle (Forward and Backward) | 6°/12° | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2450 | 2530 | 2720 |
Min. Ground Clearance(mm) | 110 | 135 | 145 |
Length (Including Fork)(mm) | 3605 | 3970 | 4100 |
Width(mm) | 1160 | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2095 | 2105 | 2115 |
Front Overhang(mm) | 451 | 465 | 465 |
Wheel Base(mm) | 1640 | 1775 | 1900 |
Front Wheel Track(mm) | 970 | 1000 | 1060 |
Rear Wheel Track(mm) | 970 | 970 | 970 |
Front Wheel Tyre | 7.00-12 | 28*9-15 | 250-15 |
Rear Wheel Tyre | 6.00-9 | 6.50-10 | 6.50-10 |
Self Weight(kg) | 3320 | 4250/4290 | 4810/4850 |
Standard Fork Length(mm) | 1070 | 1220 | 1220 |
Engine Rated Power(kw) | 36.8 | 36.8 | 36.8 |
Engine Speed At Rated Power (rmp) | 2500 | 2500 | 2500 |
Engine Maximum Torque(Nm) | 157 | 165 | 190 |
Engine Speed At Maximum Torque(rpm) | 1800 | 1600-1800 | 1600-1800 |
Variable speed form | Mechanical / Hydraulic | Mechanical/ Hydraulic | Mechanical/ Hydraulic |
Packing & Delivery
One set is packed in plywood case,delivered by LCL.
Two sets and more forklifts are packed in one container,all wheels fixed with corner block, tightened with frap rope,etc.
More sets will save shipping cost,like 3 ton models,1*40 GP Container will load 5 sets.
