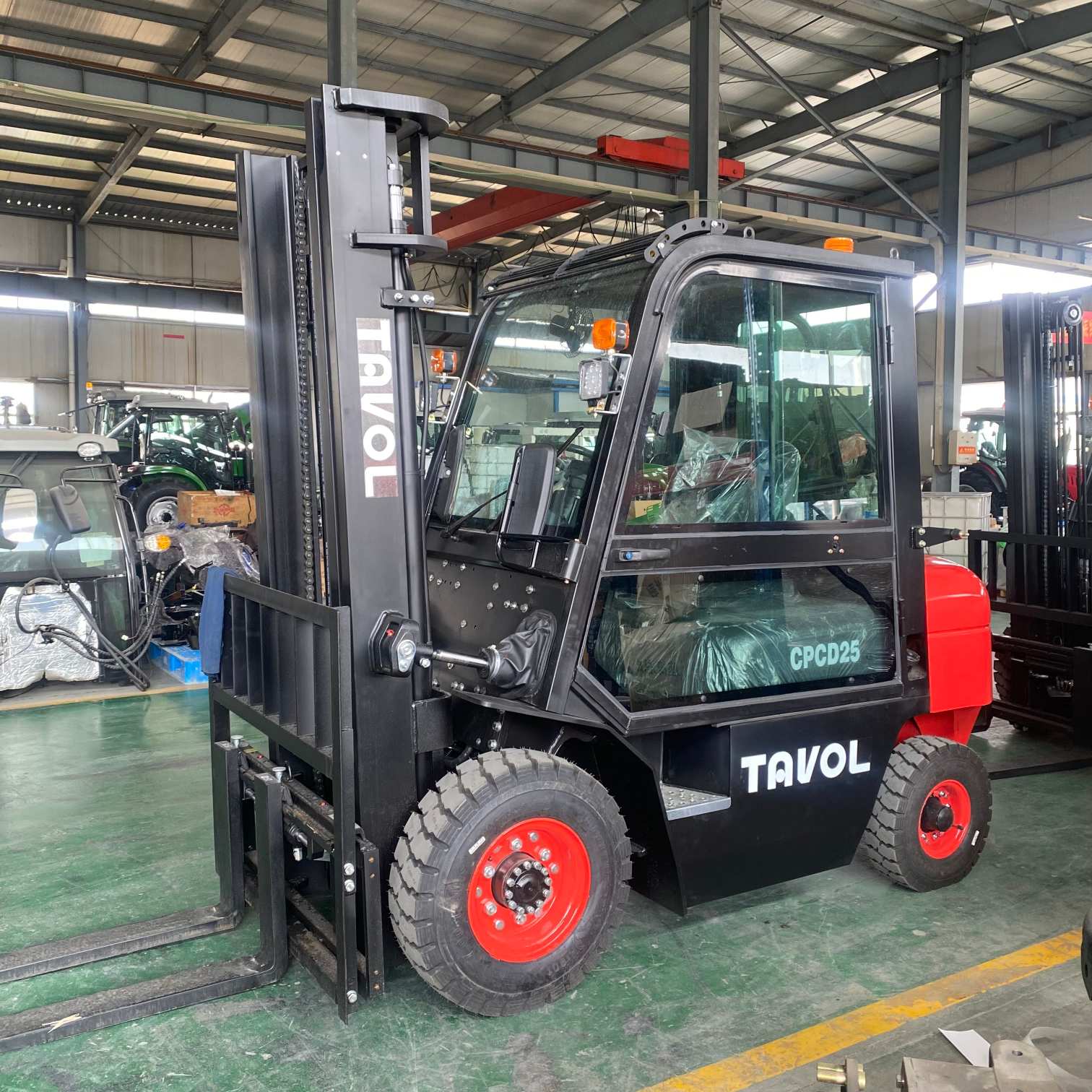

Fork lift Bucket With Cab
Tavol Diesel Forklift Adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand Chinese Xinchai brand,Japanese Isuzu brand,Mitsubishi brand and Yanmar brand which are powerful,dependable,easy to service,and with low emissions and fuel consumption.
1. Professional manufacturer since 1988
2. Quality first, profit second, 100% qualified
3. Fast delivery time:5-7 days finished production
4. Accept customization and OEM
Product Details
The wide counterweight is firmly fixed to the rear of the vehicle body, ensuring that the forklift always maintains balance when lifting heavy objects.
In heavy-load places such as ports and construction sites, diesel forklifts have become an irreplaceable main force for handling with their powerful performance
Parameter
Model | CPCD30 | CPCD35 |
Rated Loading Capacity(kg) | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 475 | 475 |
Max Driving Speed (Empty/Full load)(km/h | 18/20 | 18/20 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2710 | 2710 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 |
Front Wheel Tyre | 28x9-15-12PR | 25x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 4600 |
Standard Fork Length(mm) | 1220 | 1220 |
Engine Rated Power(kw) | 36.8 | 36.8 |
Engine Speed At Rated Power (rmp) | 2500 | 2500 |
Engine Maximum Torque(Nm) | 177 | 177 |
Engine Speed At Maximum Torque(rpm) | 1600-1800 | 1600-1800 |
Variable speed form | Mechanical/ Hydraulic | Mechanical/ Hydraulic |
Optional:
1.Engine: Standard China Quanchai/Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others;
2.Transmission: Mechanical and Automatic transmission can be chosen.
3.Mast: Standard 2-stages 3000mm mast,optional 3-stages 4500mm -6000mm full free mast and others;
4.Fork: Standard 1220mm fork,optional 1370mm,1520mm,1670mm and 1820mm forks;
5.Attachment: side shifter,Fork shoes,fork positioner,360 degree rotator,bale clamp,paper roll clamp and other attachments are available;
6.Tires: Standard pneumatic tire,optional solid tire,non-mark tire.
Service Overseas
Factory
Tavol Forklift factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting, Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture 2ton-10ton Diesel Forklifts ,1ton -5ton Electric Forklifts, 2ton to 4ton Dual LPG Forklift,Off-Road Forklift,Electric Stacker Etc.
Package and Delivery
Before leaving the factory, TAVOL usually carries out strict inspection on the forklift to ensure the transportation safety of the forklift. This includes checking mechanical components,engine,braking systems,etc.
Shipping: Once the forklifts are packed and inspected, they are ready for shipment. Depending on the distance, region, country, customer requirements and other factors, forklifts can be transported to the destination by rail, sea, air or other customer requirements .
