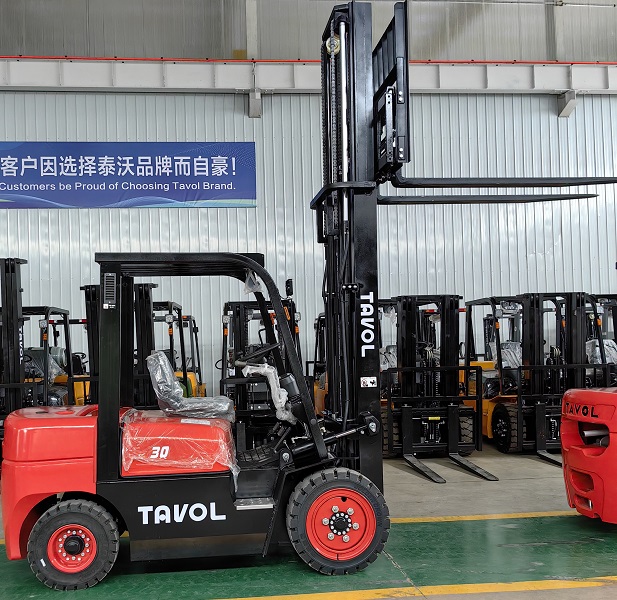

Euro V 3T 3.5T Diesel Fork Lift
Tavol Diesel Forklift Adopts the streamline design that makes the appearance more pleasing,using domestic well-known engine brand Chinese Xinchai brand,Japanese Isuzu brand,Mitsubishi brand and Yanmar brand which are powerful,dependable,easy to service,and with low emissions and fuel consumption.
1. Professional manufacturer since 1988
2. Quality first, profit second, 100% qualified
3. Fast delivery time:5-7 days finished production
4. Accept customization and OEM
Product Details
The brand slogan of Tavol is "valuing Tavol, moving things at will". Tavol forklift is well aware that every customer is extremely concerned
about the efficiency, reliability and safety of the logistics system, any error may cause huge economic losses. Therefore, with a high sense
of responsibility, Tavol Forklift factory provides perfect products and all-round solutions. Once it makes a commitment, it will fulfill it to the
letter, ensuring that the goods and systems move according to the needs and wishes of customers, and always reaching the highest level of
smooth, efficient and flow.
Technical Parameters
Model | CPCD30 | CPCD35 |
Rated Loading Capacity(kg) | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 475 | 475 |
Max Driving Speed (Empty/Full load)(km/h | 18/20 | 18/20 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2710 | 2710 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 |
Front Wheel Tyre | 28x9-15-12PR | 28x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 4600 |
Standard Fork Length(mm) | 1220 | 1220 |
Engine Rated Power(kw) | 36.8 | 36.8 |
Engine Speed At Rated Power (rmp) | 2500 | 2500 |
Engine Maximum Torque(Nm) | 177 | 177 |
Engine Speed At Maximum Torque(rpm) | 1600-1800 | 1600-1800 |
Variable speed form | Mechanical/ Hydraulic | Mechanical/ Hydraulic |
Optional:
1.Engine: Standard China Quanchai/Xinchai engine,optional Japan Isuzu, Yanmar and Mitsubishi engine and others;
2.Transmission: Mechanical and Automatic transmission can be chosen.
3.Mast: Standard 2-stages 3000mm mast,optional 3-stages 4500mm -6000mm full free mast and others;
4.Fork: Standard 1220mm fork,optional 1370mm,1520mm,1670mm and 1820mm forks;
5.Attachment: side shifter,Fork shoes,fork positioner,360 degree rotator,bale clamp,paper roll clamp and other attachments are available;
6.Tires: Standard pneumatic tire,optional solid tire,non-mark tire.
| Chinese Xinchai Engine | Japanese Isuzu Engine | Xinchai Euro 5 Engine |
| 2 Stages Duplex Mast | 2 Stages/Duplex Full Free Mast | 3 Stages Triplex Full Free Mast |
| Fork Side Shifter | Side shifter and Fork Positioner |
Tavol Forklifts Service Overseas
| 4 Ton Diesel Forklift in Germany | 3 Ton Diesel Forklift in Indonesia | 5 Ton Diesel Forklift in Chile |
| 2.5/3.5Tons Forklifts in Brazil | 2.5 Ton Cabin Forklift in Armenia | 8 Ton Diesel Forklift in Colombia |
TAVOL Factory
Tavol Forklift factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting,
Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture 2ton-10ton Diesel Forklifts ,1ton -5ton
Electric Forklifts, 2ton to 4ton Dual LPG Forklift,Off-Road Forklift,Electric Stacker Etc.
