Off-road 3 Ton Forklift
1. Tavol mechanical All models support customization.
2. Our products have been sold to dozens of countries around the world and have been recognized and praised by customers. The products will be developed and upgraded according to different market needs to provide more efficient products and services to countless partners.
3. Complete certificates applicable to environmental emission requirements of various countries.
4. We are online 24 hours a day to provide you with service and help at any time.
Hot Sale Articulated All Rough Terrain Forklift 4x4 1.5 Ton 2 Ton 3 Ton 3.5 Ton 5 Ton 4WD Small off Road diesel Forklift
Product Description

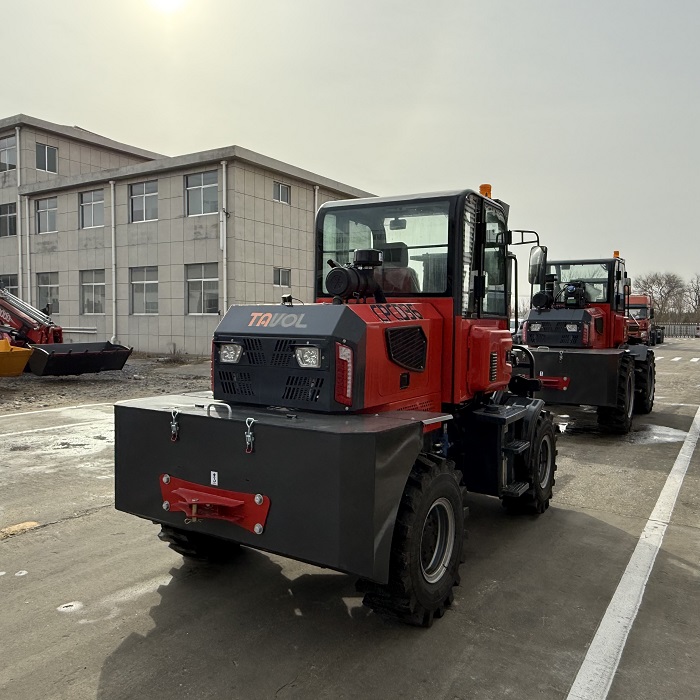

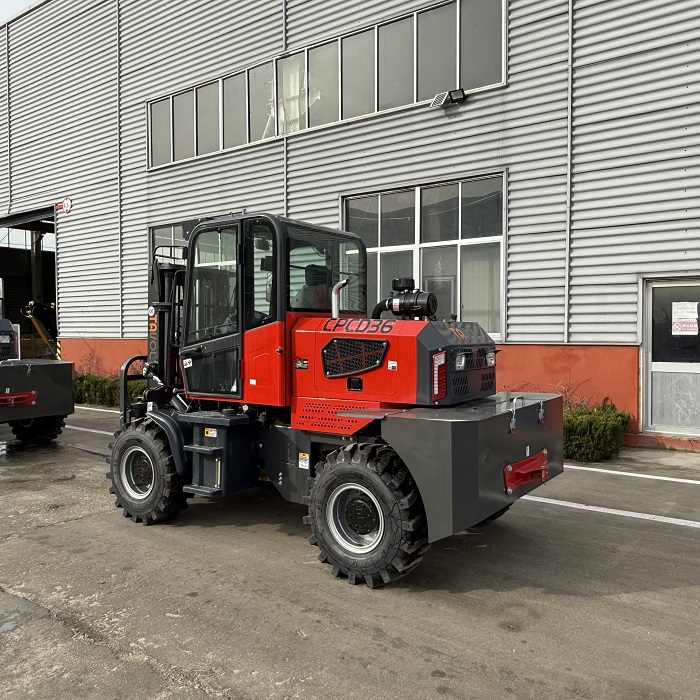

Our 3-ton Rough Terrain forklift truck is engineered to revolutionize your material handling operations with exceptional power, fuel efficiency, and durability. Designed for demanding industrial environments, this heavy-duty forklift delivers superior performance while reducing operational costs and maximizing productivity. Whether you're working in warehouses, construction sites, or manufacturing facilities, this reliable diesel-powered forklift ensures smooth and efficient load handling.
What type of machinery do we offer?
* Diesel Forklift: 2ton 2.5ton 3ton 3.5ton 4ton 4.5ton 5ton 6ton 7ton 8ton 10ton
* Electric Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* LPG Forklift: 2ton, 2.5ton, 3ton, 3.5ton, 4ton
* Rough Terrain Forklift: 2ton 3ton 3.5ton 4ton 5ton
* Electric Stacker: 1.5ton, 2ton, 2.5ton, 3ton
Product Specifications
Model | TA300 | TA200 | TA500 |
Engine | Yunnei 490 / 42kw | Yunnei 490 / 37kw | Yunnei 4102 / 76kw |
Product Packaging Rated Load | 3000kg | 2000kg | 5000kg |
Max. lifting height | 2-stages 3000mm | 2-stages 3000mm | 2-stages 3000mm |
Gear | Automatic transmission | Automatic transmission | Automatic transmission |
Mast width | 160mm | 140mm | 180mm |
Articulation | Rear 200mm / front 250mm | Rear 120mm / front 200mm | Rear 200mm / front 300mm |
Forward angle | 10° | 10° | 10° |
Turning Radius | 3600mm (outer tire) | 3100mm (outer tire) | 3900mm (outer tire) |
Wheelbase | 2250mm | 1950mm | 2350mm |
Steering | Hydraulic power assist | Hydraulic power assist | Hydraulic power assist |
Drive mode | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Tire | 20.5/70-16 High pressure, heavier and wider | 20.5/70-16 High pressure, heavier and wider | 16/70-24 semi-solid |
Braking | Air brakes (four-wheel disc brakes) | Air brakes (four-wheel disc brakes) | Air brakes (four-wheel disc brakes) |
Self weight | 4450kg | 3150kg | 5700kg |
Dimensions | 3700*1800*2450mm | 3200*1600*2400mm | 3950*2100*2640mm |
Minimum ground clearance | 260mm | 248mm | 330mm |
Lifting chain | Carbon steel forging 7 pieces | Carbon steel forging 5 pieces | Carbon steel forging 7 pieces |
Fork length | 1220mm | 1220mm | 1220mm |
Optional
1.Standard 2-stages 3000mm mast, optional 3-stages 4500mm-7500mm mast;
2.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3.Optional side shifter, fork positioner and other attachments;
4.Standard pneumatic tire, optional solid tire.
Product Packaging
Optional LCL/ Full containers/ CKD&SKD Package.
Successful Cases in the World
We have transported 10,000+ forklifts to customers around the world and have established long-term cooperative relationships with customers. We visit customers from time to time every year to understand their needs for products and problems encountered during use, and solve them in a timely manner. Customers also visit our factory normally to learn about the production process and product knowledge. Mutual benefit and common development.
Our Service Team
We have a professional after-sales team
In technical support and after-sales service, we always adhere to our company's consistent quality management policy and the service principle of "Making global customers proud of choosing the Tavol brand" to ensure that we provide customers with complete and thoughtful technical support and after-sales service. Our company's service purpose is always to provide customers with professional, standardized and diversified services.
Company Profile
Shandong Tavol Group Co., Ltd
Build in 2011, Address in No. 46, Changcheng Road, Taishan District, Tai'an City, Shandong Province, China. Belongs to Shandong Tavol Group Co., Ltd, Mainly Engaged in Investment and Financing Activities, and Sells Material Handling, Engineering and Agricultural Machinery Etc. Tavol Products have been Exported to More Than 100 Countries and Regions in the World, and Have Obtained the Madrid International Trademark, and Have a High Brand Awareness in Most Southeast Asia, South America and Eastern Europe Countries.
Shandong Tavol Heavy Industry Co.,Ltd is a Chinese Material Handling Equipment Manufacturer that Helps your Business Grow Step by Step. It Has Won and Obtained Honors and Qualifications Such as National High-tech Enterprise,Shandong Province Specialization and Special New Enterprise, CE EU Certification, etc. It is Located in the National High-tech Development Zone of Tai'an City. Mainly Designs, Manufactures, Sells, Material Handling equipment, including Diesel Forklift, Electric Forklift, Dual Fuel Forklift etc. We also provide wheel loaders, backhoe loaders, excavators, tractors, etc.
Whether you're an agricultural farmer, a mine owner, or a contractor on a construction site, there will always be one machine that is right for you. As long as you can drive, you will operate these machine easily, It will definitely be your good partner to make a fortune.
