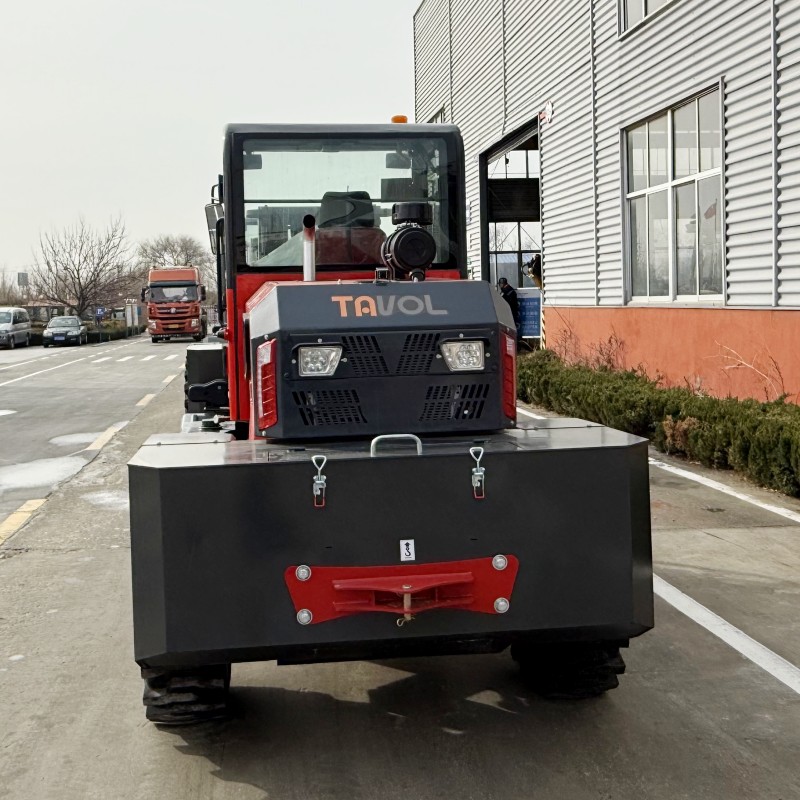

All Terrain Forklift 3.5 Ton 4WD Forklift Outdoor
1. Tavol mechanical All models support customization.
2. Our products have been sold to dozens of countries around the world and have been recognized and praised by customers. The products will be developed and upgraded according to different market needs to provide more efficient products and services to countless partners.
3. Complete certificates applicable to environmental emission requirements of various countries.
4. We are online 24 hours a day to provide you with service and help at any time.
The 2025 Four-Wheel-Drive Off-Road Rough Terrain Forklift is a high-performance diesel-powered machine designed for heavy-duty operations on challenging surfaces like mud, gravel, and uneven terrain. Available in 3-ton, 4-ton, and 5-ton load capacities, this all-terrain forklift features a rugged 4WD system, reinforced chassis, and an advanced hydraulic lift mechanism for superior stability and lifting precision. Equipped with large, deep-tread tires, a robust diesel engine, and enhanced suspension, it ensures optimal traction and durability in construction, mining, agriculture, and logistics. With ergonomic controls, weather-resistant cabins (optional), and low-maintenance components, this forklift is built for efficiency and longevity. Contact us today for pricing and availability!
Product Specifications
Model | TA300 | TA200 | TA500 |
Engine | Yunnei 490 / 42kw | Yunnei 490 / 37kw | Yunnei 4102 / 76kw |
Product Packaging Rated Load | 3000kg | 2000kg | 5000kg |
Max. lifting height | 2-stages 3000mm | 2-stages 3000mm | 2-stages 3000mm |
Gear | Automatic transmission | Automatic transmission | Automatic transmission |
Mast width | 160mm | 140mm | 180mm |
Articulation | Rear 200mm / front 250mm | Rear 120mm / front 200mm | Rear 200mm / front 300mm |
Forward angle | 10° | 10° | 10° |
Turning Radius | 3600mm (outer tire) | 3100mm (outer tire) | 3900mm (outer tire) |
Wheelbase | 2250mm | 1950mm | 2350mm |
Steering | Hydraulic power assist | Hydraulic power assist | Hydraulic power assist |
Drive mode | Four-wheel drive | Four-wheel drive | Four-wheel drive |
Tire | 20.5/70-16 High pressure, heavier and wider | 20.5/70-16 High pressure, heavier and wider | 16/70-24 semi-solid |
Braking | Air brakes (four-wheel disc brakes) | Air brakes (four-wheel disc brakes) | Air brakes (four-wheel disc brakes) |
Self weight | 4450kg | 3150kg | 5700kg |
Dimensions | 3700*1800*2450mm | 3200*1600*2400mm | 3950*2100*2640mm |
Minimum ground clearance | 260mm | 248mm | 330mm |
Lifting chain | Carbon steel forging 7 pieces | Carbon steel forging 5 pieces | Carbon steel forging 7 pieces |
Fork length | 1220mm | 1220mm | 1220mm |
Product Detailed Information
Every component of the forklift, from the core power system to the smallest fasteners, has been strictly selected and quality controlled.
As a key equipment in the field of industrial logistics, the reliability of the Forklift is directly related to production efficiency and operational safety, so its manufacturing process reflects the ultimate pursuit of details.
At the power system level, whether it is the turbocharger of the diesel engine, the high-pressure common rail injection system, or the lithium battery module and BMS management system of the Electric Forklift, they all adopt mature solutions that have passed tens of thousands of hours of endurance testing. Key hydraulic components such as plunger pumps and multi-way valves in the hydraulic system must have their matching accuracy controlled at the micron level to ensure smooth lifting without shaking.
|
|
|

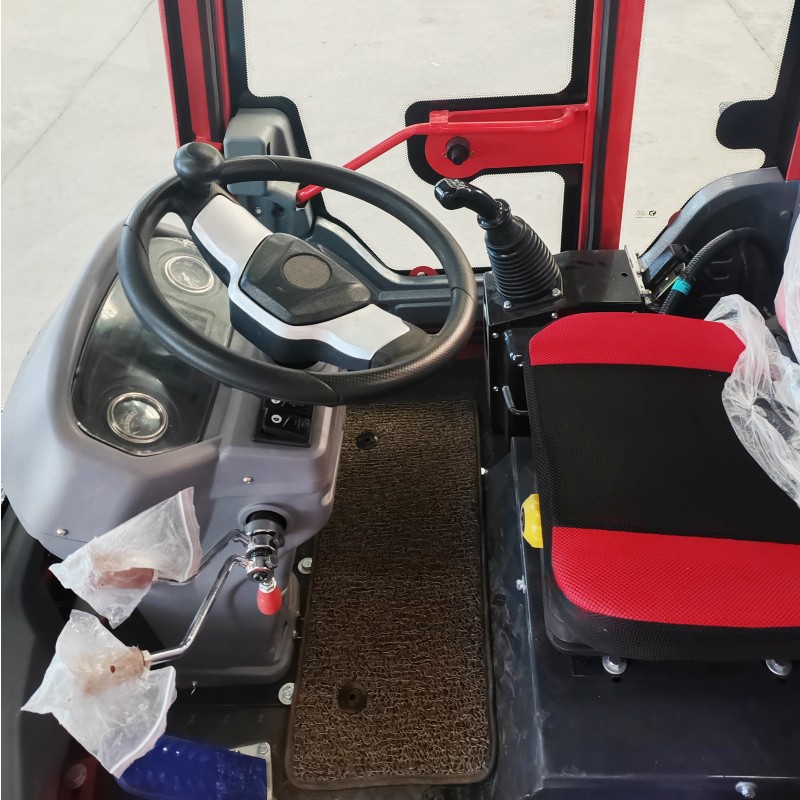

Steering Wheel Hydraulic power steering, easy to operate, reduces fatigue, precise steering, sensitive response, and optimized ergonomics. | Joystick Control Through the transmission of operating instructions by hydraulic or electrical signals, the lifting and lowering, forward and backward tilting of the fork can be controlled more conveniently and quickly | Control Panel It integrates multiple functions such as information visualization, operation control and intelligent diagnosis. Its technical advantages significantly improve operational efficiency and safety. |
|
|
|
Powerful Diesel Enigne Super strong power output, ultra-low fuel consumption, weather resistance performance 30℃ cold start to 50℃ high temperature continuous operation, and ultra-long service life. | Optional Mast Ultra-high-strength steel, mast shock-absorbing technology, double safety valves for hydraulic cylinders, and chain break sensors are used to achieve efficient, reliable, and durable operating performance. | Semi-solid Tire Combining the cushioning performance of pneumatic tires and the durability of solid tires, its core advantages lie in puncture resistance, maintenance-free, long life and shock absorption capabilities. |
Optional
1.Standard 2-stages 3000mm mast, optional 3-stages 4500mm-7500mm mast;
2.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3.Optional side shifter, fork positioner and other attachments;
4.Standard pneumatic tire, optional solid tire.
Contact Daisy Lee, Whatsapp:+86 16226686777, E-Mail: sls03@tavolgroup.com, Wechat: +86 15253929653(Phone)
We can customize and install various attachments like rotator, hydraulic bucket, clamp, grass grabber, auger, downturn fork, telescopic hanger, crane, pusher, etc.
Product Packaging
Optional LCL/ Full containers/ CKD&SKD Package.
Contact Us
Daisy Lee, Whatsapp:+86 16226686777, E-Mail: sls03@tavolgroup.com, Wechat: +86 15253929653(Phone)
Our Service Team
We have a professional after-sales team
In technical support and after-sales service, we always adhere to our company's consistent quality management policy and the service principle of "Making global customers proud of choosing the Tavol brand" to ensure that we provide customers with complete and thoughtful technical support and after-sales service. Our company's service purpose is always to provide customers with professional, standardized and diversified services.
Company Profile
Shandong Tavol Group Co., Ltd
Build in 2011, Address in No. 46, Changcheng Road, Taishan District, Tai'an City, Shandong Province, China. Belongs to Shandong Tavol Group Co., Ltd, Mainly Engaged in Investment and Financing Activities, and Sells Material Handling, Engineering and Agricultural Machinery Etc. Tavol Products have been Exported to More Than 100 Countries and Regions in the World, and Have Obtained the Madrid International Trademark, and Have a High Brand Awareness in Most Southeast Asia, South America and Eastern Europe Countries.
Whether you're an agricultural farmer, a mine owner, or a contractor on a construction site, there will always be one machine that is right for you. As long as you can drive, you will operate these machine easily, It will definitely be your good partner to make a fortune.
What type of machinery do we offer?
* Diesel Forklift: 2ton 2.5ton 3ton 3.5ton 4ton 4.5ton 5ton 6ton 7ton 8ton 10ton
* Electric Forklift: 1ton, 1.5ton, 2ton, 2.5ton, 3ton, 3.5ton, 4ton, 5ton
* LPG Forklift: 2ton, 2.5ton, 3ton, 3.5ton, 4ton
* Rough Terrain Forklift: 3ton, 3.5ton, 4ton, 5ton * Telescopic Handler Forklift: 3ton, 3.5ton, 4ton, 5ton, 6ton
