Tavol Topkits and Flattop Tower Crane Price

Product Details

Tavol Tower crane is a fully slewing jib crane with a tower-like structure. It is a common means of transportation in large civil
engineering construction sites. It can move construction materials and construction machinery up and down in a crisscross direction. The task of moving objects can be completed quickly. One end of the tower crane is used to lift objects, the middle is a control cabin, and the other end is balanced with a giant concrete block. Tower cranes are usually fixed in the center of a building so that objects can be moved to different locations and heights.

Tavol Construction Tower cranes are a modern form of balanced cranes that consist of the same basic components. Crane tower is fixed to a concrete slab (sometimes attached to the side of the structure) and usually provide the best combination of height and lifting capacity for the construction of high-rise buildings. The base is then connected to the mast, which gives the crane height. In addition, the mast is connected to a slewing unit (gear and motor) that allows the crane to rotate. There are three main parts on top of the slewing device: the working boom, the jib, and the cab. The working boom is the part of the crane that carries the load. The jib carries a counterweight, usually a concrete block. The tower crane can be controlled by the cab or a wireless remote control. The cab is usually located on top of a tower connected to a turntable and can be mounted on a boom. The lifting hook is operated by the crane operator using an electric motor. The hook is located on a winch on a long horizontal arm and is used to lift construction materials. The optimal location of the tower crane on the construction site has a significant impact on the material transportation costs of the project. The performance & technical specification is advanced in China, has reached the international advanced level.

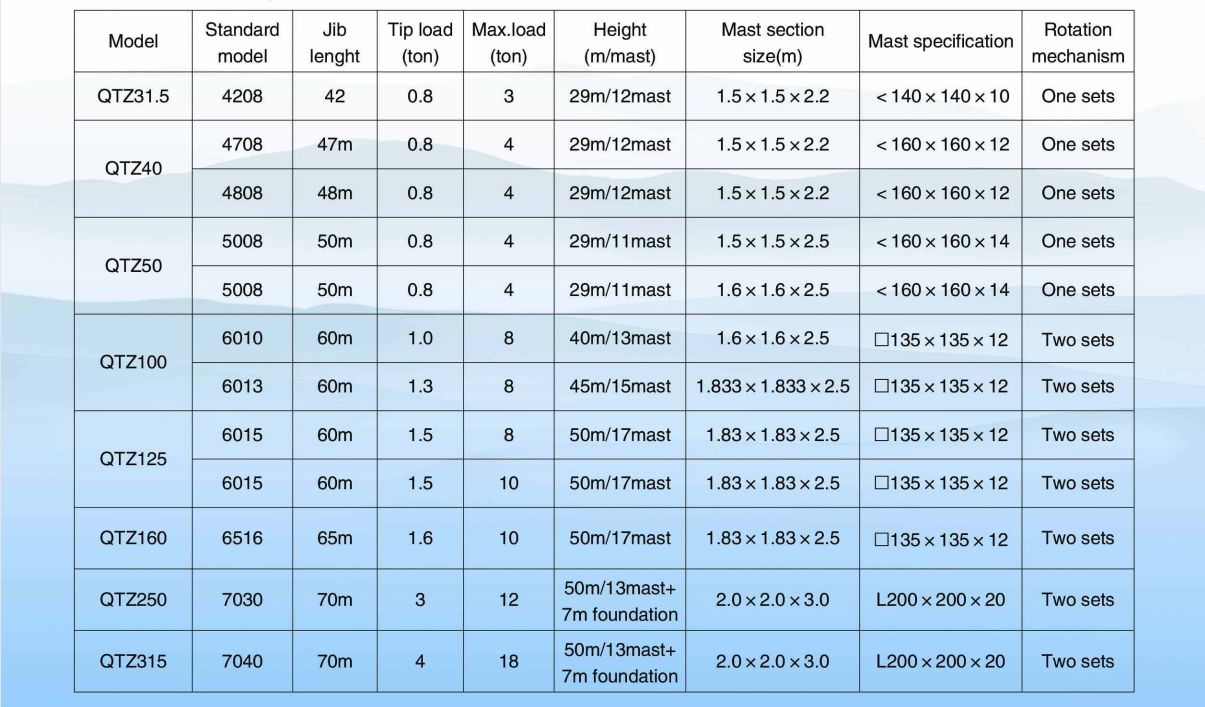

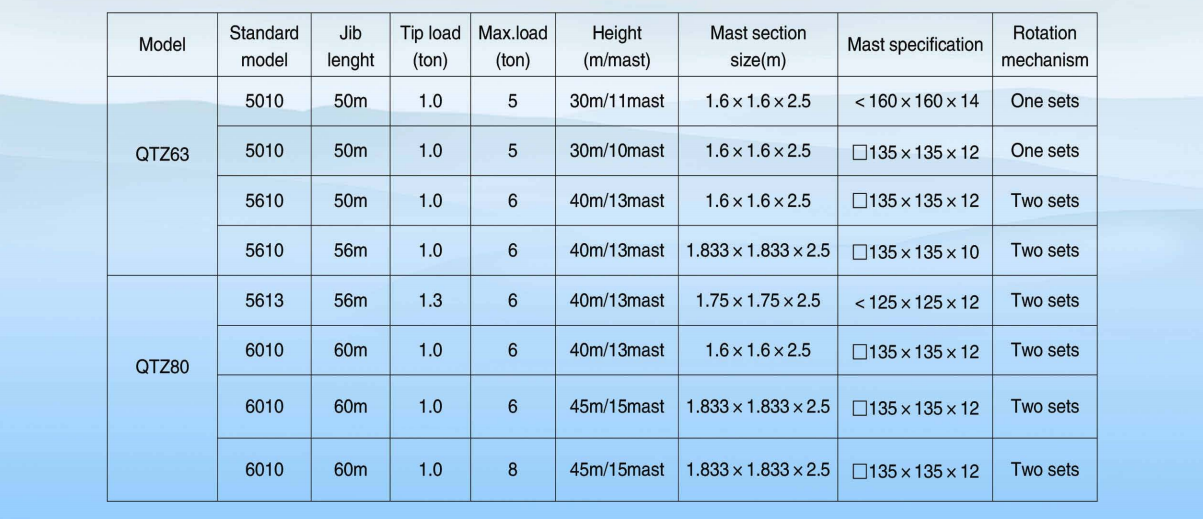

Models for Options,can be cunstomized

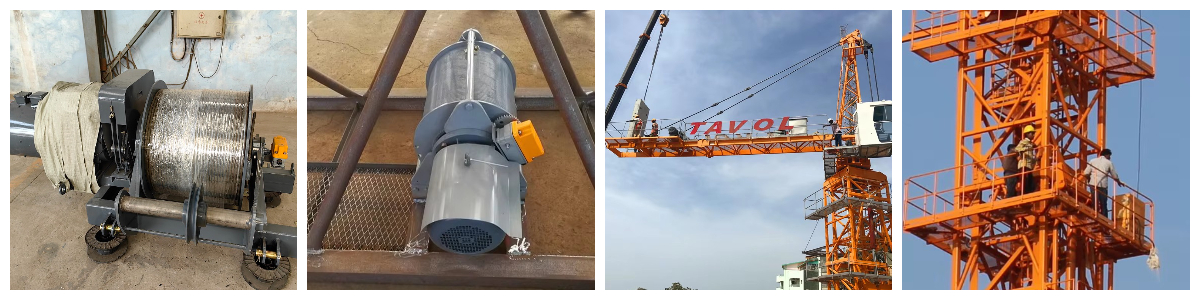

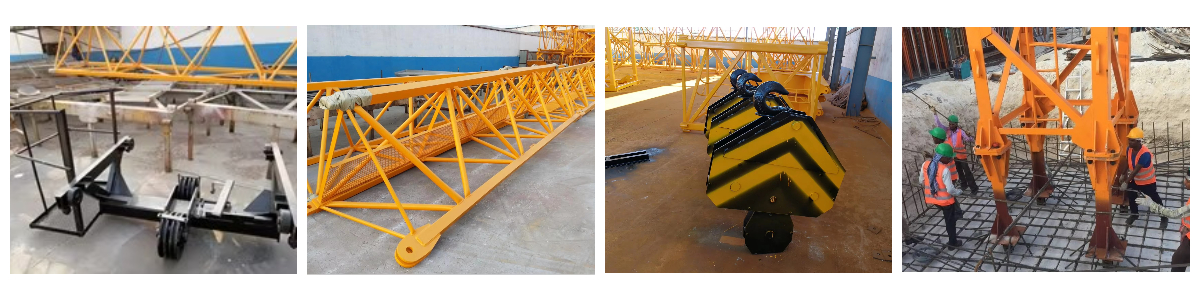

        Trolley                                                     Lifting Boom                                                 Hook Block                                       Crane Foundation

     Lifting Motor                                                   Trolley Motor                                 Balance Boom                                    Jacking Mechanism

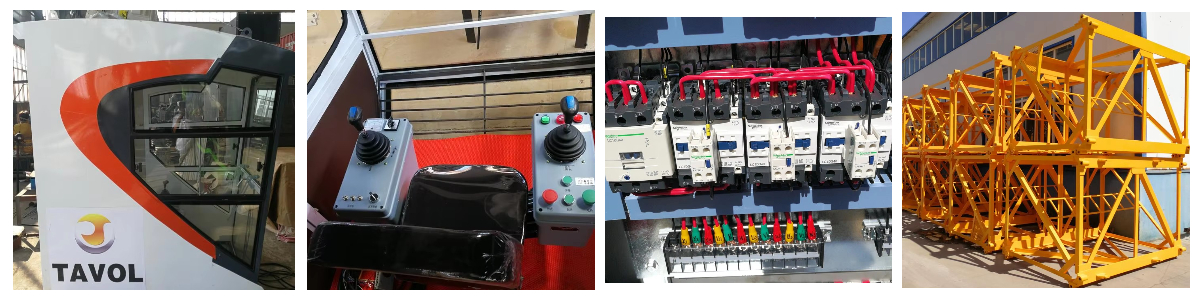

    Cabin with AC                                             Console                                                  Control Panel                                           Standard Mast

Tavol Factory

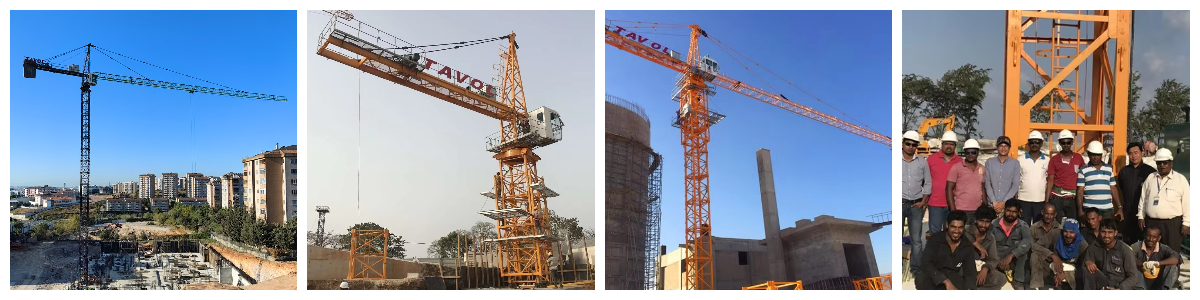

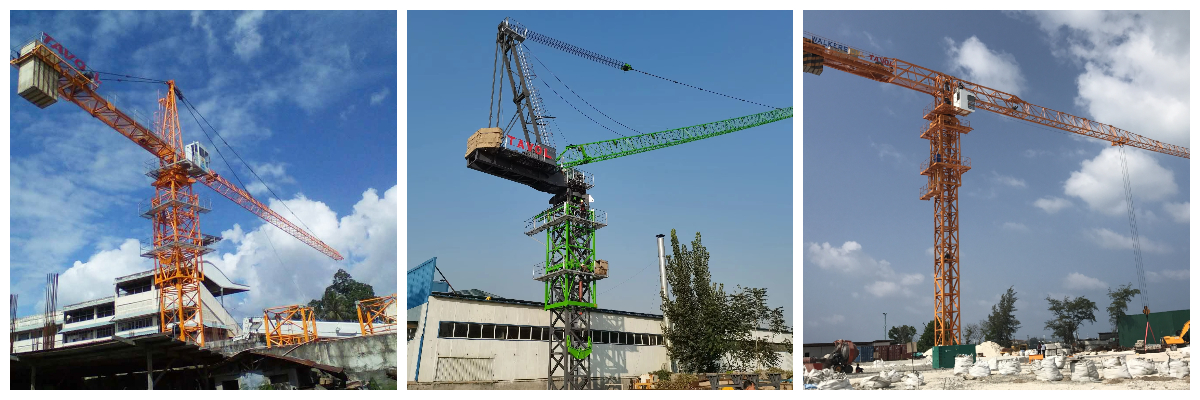

Oversea project

    8 Ton Tower Crane in Turkey                     10 Ton Tower Crane in S.A.                   6 Ton Tower Crane in Oman                  12 Ton Tower Crane in Guinea

Tavol tower crane factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting, Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture Tower Crane,Constrcution Elevator, Forklifts Etc.

Certification

Package and Delivery

Before leaving the factory, TAVOL usually carries out strict inspection on the tower crane to ensure the transportation safety of the crane parts. This includes checking mechanical components,motor,braking systems,etc.

Shipping: Once the tower cranes are packed and inspected, they are ready for shipment. Depending on the distance, region, country, customer requirements and other factors, tower cranes can be transported to the destination by rail,sea,air or other customer requirements.
