Diesel Outdoor All Terrain Forklift 4WD 4.5m Lifting 3ton 5 Ton

1. Tavol mechanical All models support customization.

2. Our products have been sold to dozens of countries around the world and have been recognized and praised by customers. The products will be developed and upgraded according to different market needs to provide more efficient products and services to countless partners.

3. Complete certificates applicable to environmental emission requirements of various countries.

4. We are online 24 hours a day to provide you with service and help at any time.

Contact Now E-Mail Telephone WhatsApp

Product Details

Powerful Performance

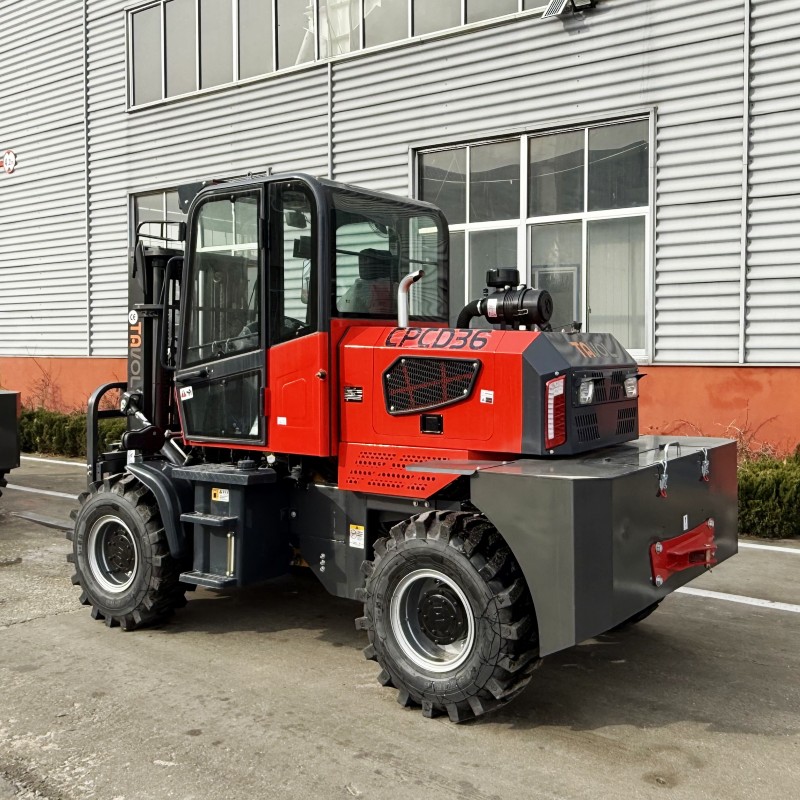

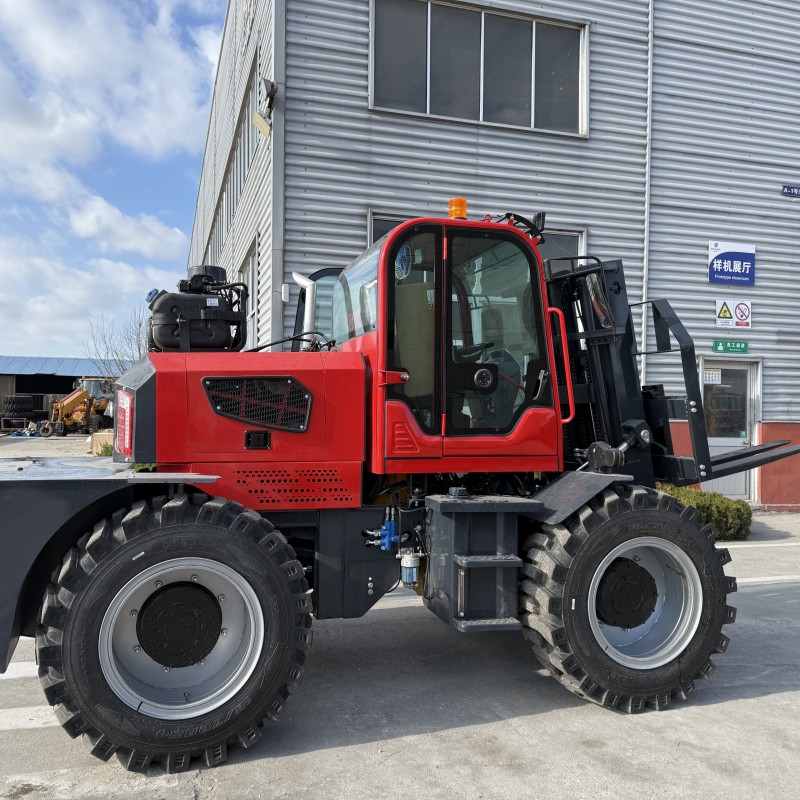

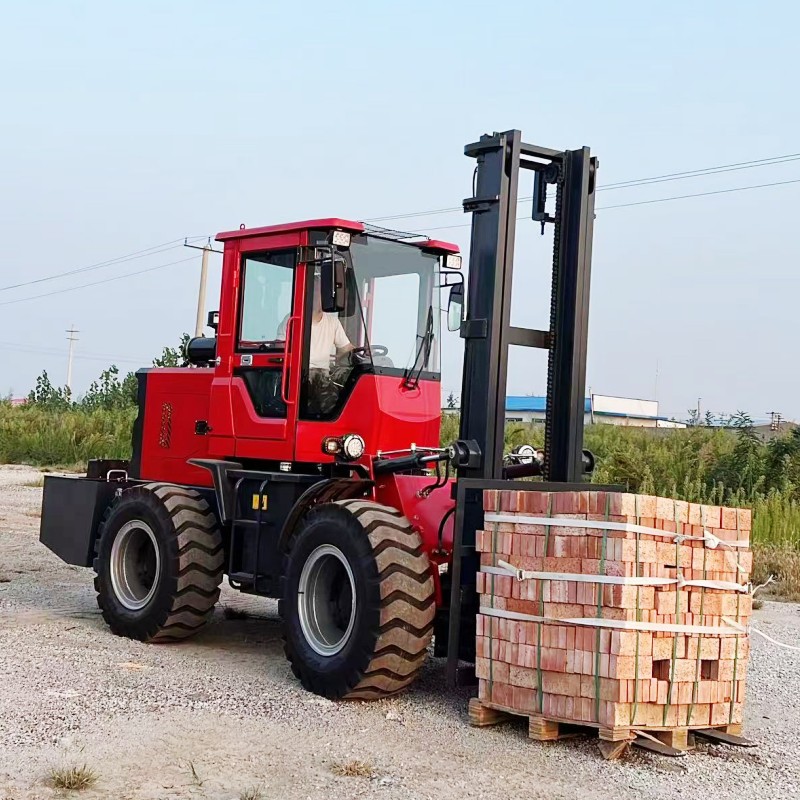

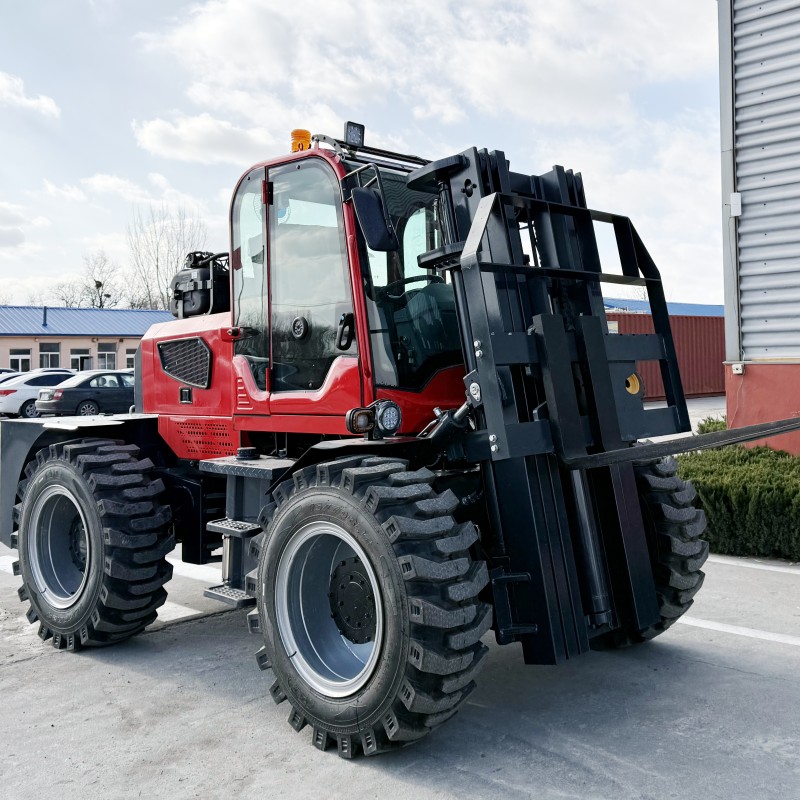

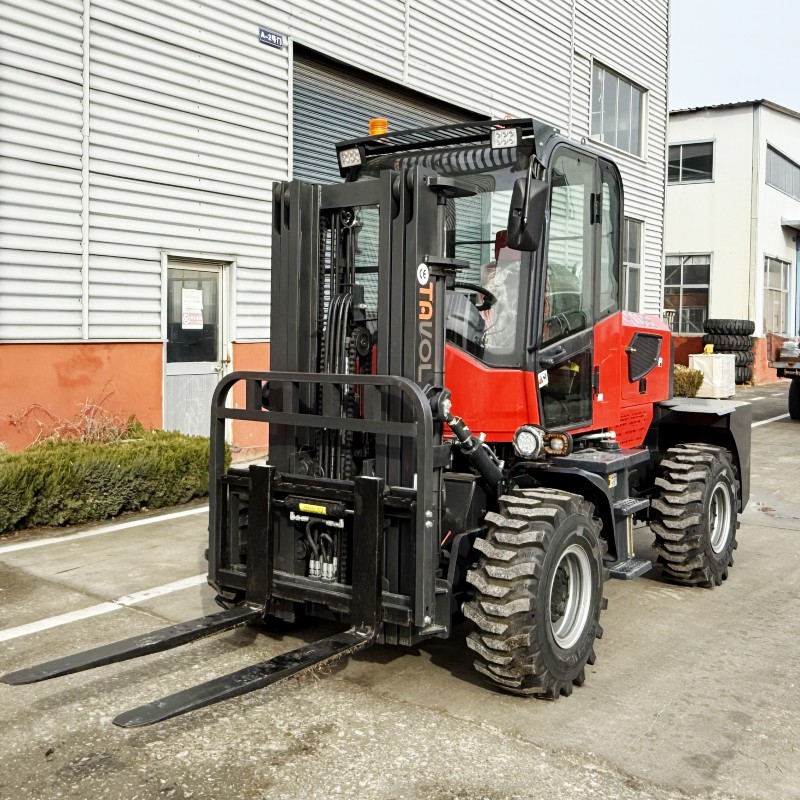

This robust 4WD diesel forklift is designed for heavy-duty outdoor operations, offering load capacities of 3, 3.5, and 5 tons. Equipped with a Euro 5-compliant engine, it delivers high torque and fuel efficiency while meeting stringent emission standards. The hydraulic system ensures smooth lifting and precise control, even on uneven surfaces.

Built for Rough Terrain
Featuring all-terrain tires and a reinforced chassis, this forklift excels in challenging environments like construction sites, lumber yards, and muddy or rocky terrain. The 4-wheel drive enhances traction and stability, while the high ground clearance prevents undercarriage damage.

Product Specifications

Model	TA300	TA200	TA500
Engine	Yunnei 490 / 42kw	Yunnei 490 / 37kw	Yunnei 4102 / 76kw
Product Packaging Rated Load	3000kg	2000kg	5000kg
Max. lifting height	2-stages 3000mm	2-stages 3000mm	2-stages 3000mm
Gear	Automatic transmission	Automatic transmission	Automatic transmission
Mast width	160mm	140mm	180mm
Articulation	Rear 200mm / front 250mm	Rear 120mm / front 200mm	Rear 200mm / front 300mm
Forward angle	10°	10°	10°
Turning Radius	3600mm (outer tire)	3100mm (outer tire)	3900mm (outer tire)
Wheelbase	2250mm	1950mm	2350mm
Steering	Hydraulic power assist	Hydraulic power assist	Hydraulic power assist
Drive mode	Four-wheel drive	Four-wheel drive	Four-wheel drive
Tire	20.5/70-16 High pressure, heavier and wider	20.5/70-16 High pressure, heavier and wider	16/70-24 semi-solid
Braking	Air brakes (four-wheel disc brakes)	Air brakes (four-wheel disc brakes)	Air brakes (four-wheel disc brakes)
Self weight	4450kg	3150kg	5700kg
Dimensions	370018002450mm	320016002400mm	395021002640mm
Minimum ground clearance	260mm	248mm	330mm
Lifting chain	Carbon steel forging 7 pieces	Carbon steel forging 5 pieces	Carbon steel forging 7 pieces
Fork length	1220mm	1220mm	1220mm

Product Detailed Information

Every component of the forklift, from the core power system to the smallest fasteners, has been strictly selected and quality controlled.

As a key equipment in the field of industrial logistics, the reliability of the forklift is directly related to production efficiency and operational safety, so its manufacturing process reflects the ultimate pursuit of details.

At the power system level, whether it is the turbocharger of the diesel engine, the high-pressure common rail injection system, or the lithium battery module and BMS management system of the electric forklift, they all adopt mature solutions that have passed tens of thousands of hours of endurance testing. Key hydraulic components such as plunger pumps and multi-way valves in the hydraulic system must have their matching accuracy controlled at the micron level to ensure smooth lifting without shaking.

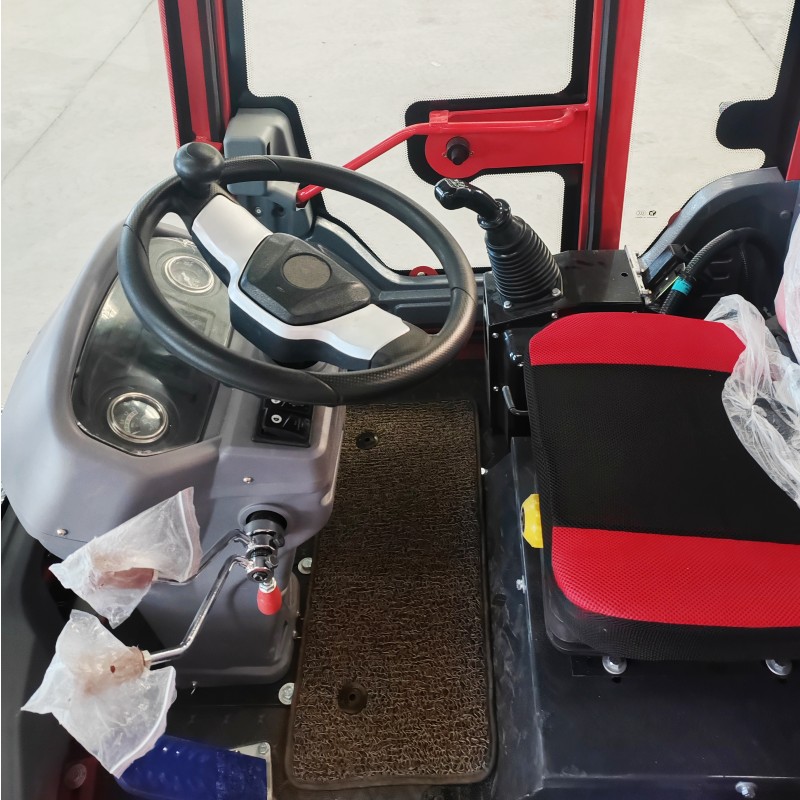

Steering Wheel Hydraulic power steering, easy to operate, reduces fatigue, precise steering, sensitive response, and optimized ergonomics.	Joystick Control Through the transmission of operating instructions by hydraulic or electrical signals, the lifting and lowering, forward and backward tilting of the fork can be controlled more conveniently and quickly	Control Panel It integrates multiple functions such as information visualization, operation control and intelligent diagnosis. Its technical advantages significantly improve operational efficiency and safety.

Powerful Diesel Enigne Super strong power output, ultra-low fuel consumption, weather resistance performance 30℃ cold start to 50℃ high temperature continuous operation, and ultra-long service life.	Optional Mast Ultra-high-strength steel, mast shock-absorbing technology, double safety valves for hydraulic cylinders, and chain break sensors are used to achieve efficient, reliable, and durable operating performance.	Semi-solid Tire Combining the cushioning performance of pneumatic tires and the durability of solid tires, its core advantages lie in puncture resistance, maintenance-free, long life and shock absorption capabilities.

Optional

1.Standard 2-stages 3000mm mast, optional 3-stages 4500mm-7500mm mast;

2.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;

3.Optional side shifter, fork positioner and other attachments;

4.Standard pneumatic tire, optional solid tire.

Contact Daisy Lee, Whatsapp:+86 16226686777, E-Mail: sls03@tavolgroup.com, Wechat: +86 15253929653(Phone)

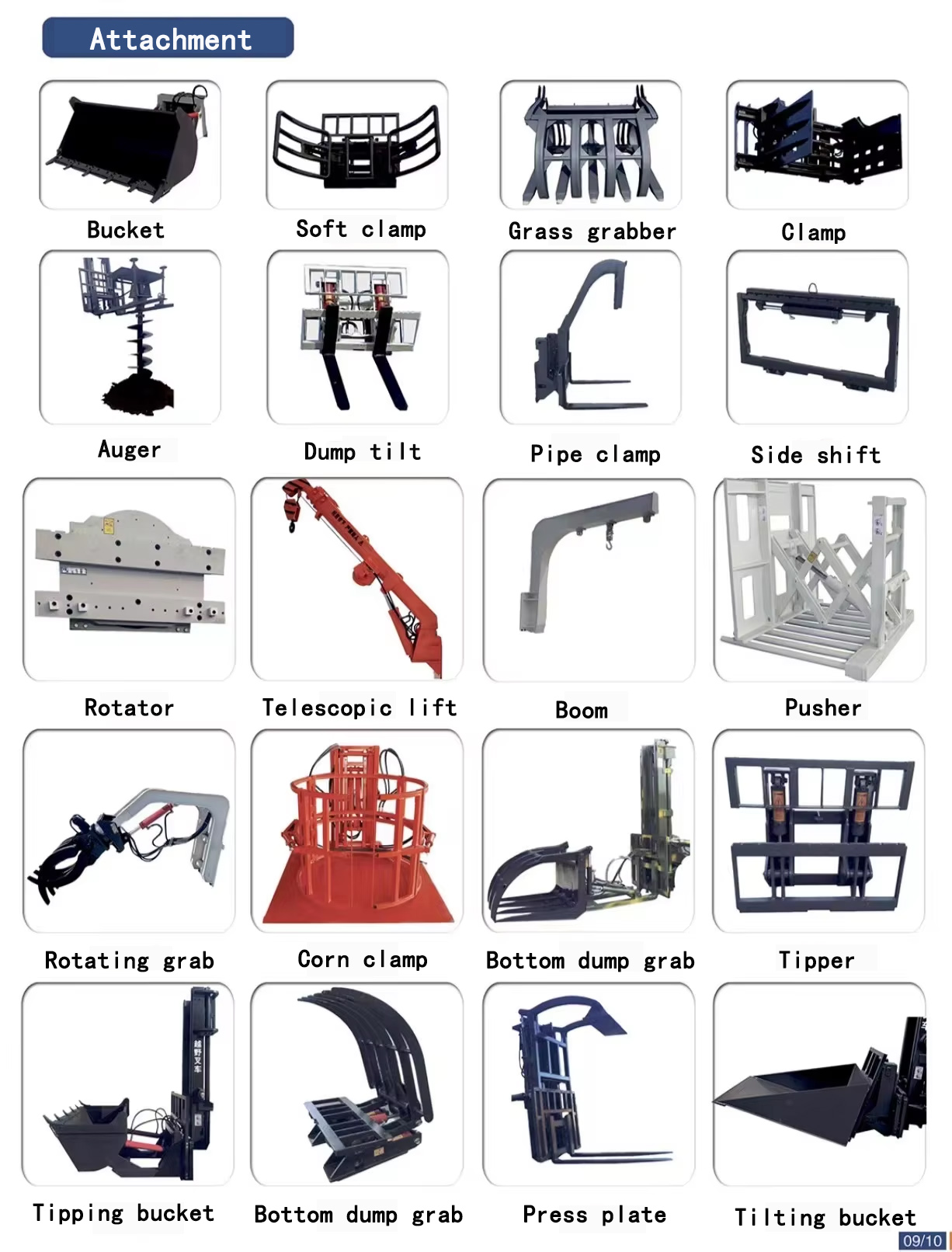

Forklift Attachment

We can customize and install various attachments like rotator, hydraulic bucket, clamp, grass grabber, auger, downturn fork, telescopic hanger, crane, pusher, etc.
