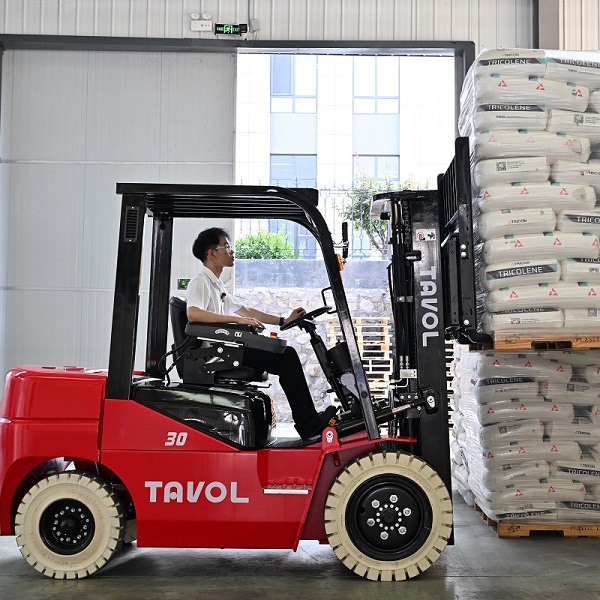

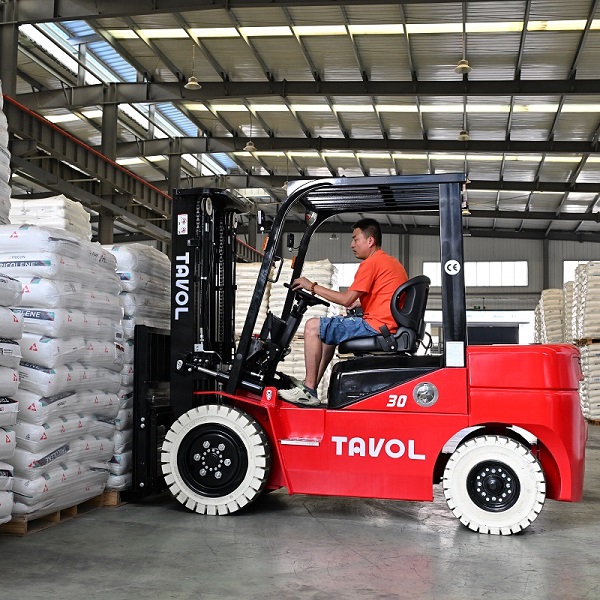

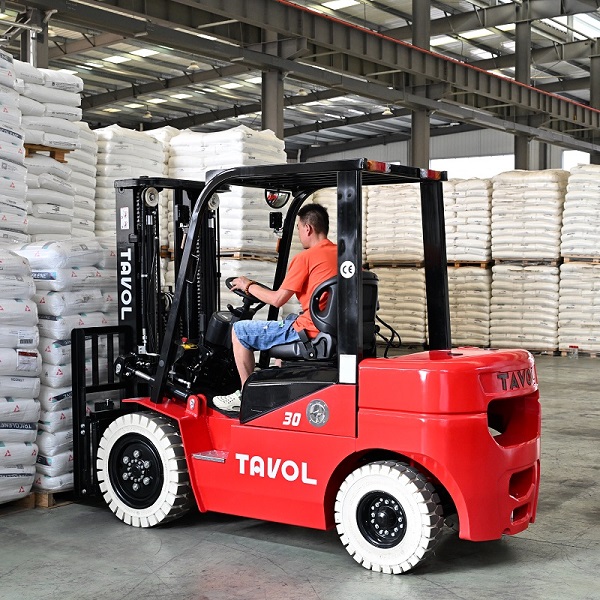

Fingertip Control 3 Ton 3.5 Ton Electric Forklift with Non-Mark Solid Tire
Why Tavol Electric Forklift ?
1. Performance (Power)
F: Dual-Motor System (15kW Drive + 13kW Pump).
A: Industry-leading 27% gradeability, matching diesel power.
B: Conquer steep slopes effortlessly, boosting your job-site efficiency.
2. Technology (Eco-Battery)
F: 80V/205Ah/280Ah/350AH/460AH Modular Lithium-ion Battery.
A: 2h fast charge, zero maintenance, and zero emissions.
B: Drastically reduce downtime and save 30%+ in operational costs.
3. Comfort (Operator)
F: Professional Toyota-brand suspension seat.
A: Minimizes vibration and operator fatigue during long shifts.
B: Retain top drivers and ensure maximum safety and focus.
Product Details

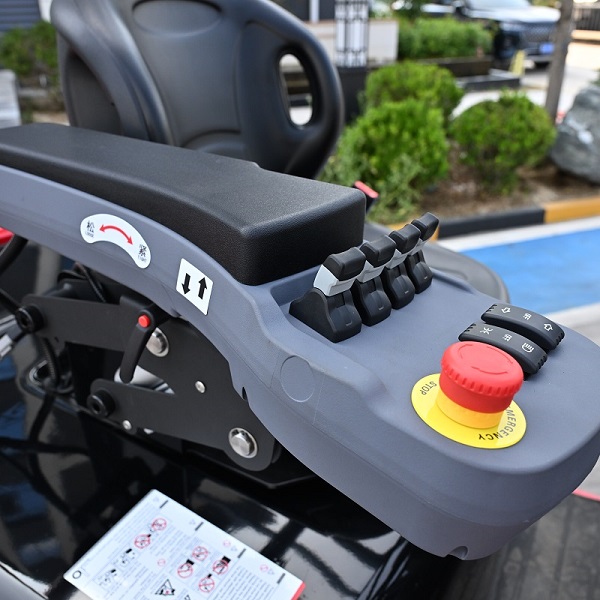

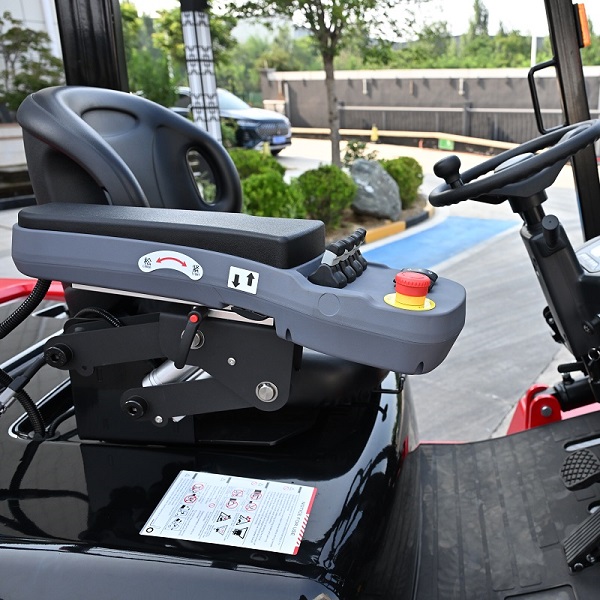

The finger‑tip forklift adopts innovative fingertip operation design. Without foot pedals and traditional joysticks, driving, steering, lights and other functions can be completed with just one finger. It greatly relieves drivers’ foot, arm and shoulder fatigue during long‑hour shifts.
Its lifting system delivers ultra‑smooth performance with zero vibration. It avoids jerky movements, effectively protecting fragile and delicate goods from damage. Higher working efficiency brings more value to your warehouse.
Parameter
Model | CPD30 | CPD35 |
Rated Loading Capacity(kg) | 3000 | 3500 |
Load Center Distance(mm) | 500 | 500 |
Max Lifting Speed (Full load)(mm/h) | 465 | 475 |
Max Driving Speed (Empty/Full load)(km/h | 15/16 | 15/16 |
Fork Lifting Height(mm) | 3000-6000 | 3000-6000 |
Mast Tilt Angle (Forward and Backward | 6°/12° | 6°/12° |
Min. Turning Radius(mm) | 2440 | 2440 |
Min. Ground Clearance(mm) | 135 | 135 |
Length (without Fork)(mm) | 2855 | 2855 |
Width(mm) | 1230 | 1230 |
Height From Ground to Overhead Guard(mm) | 2145 | 2145 |
Front Overhang(mm) | 475 | 475 |
Wheel Base(mm) | 1700 | 1700 |
Front Wheel Track(mm) | 1000 | 1000 |
Rear Wheel Track(mm) | 970 | 970 |
Front Wheel Tyre | 28x9-15-12PR | 25x9-15-12PR |
Rear Wheel Tyre | 6.50-10-10PR | 6.50-10-10PR |
Self Weight(kg) | 4250 | 4600 |
Standard Fork Length(mm) | 1220 | 1220 |
Battery(optional) | 76.8V/205AH(optional) | 76.8V/205AH(optional) |
Charger | 100A | 100A |
Charging time | 2Hour | 2Hour |
Steering System | Hydraulic | Hydraulic |
| Instrument Panel | Lithium battery unit | Control | Lithium Battery Pack |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,80V/280Ah,80V/460AH,80V/525AH,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;
6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Service Overseas
Our Factory
Tavol Forklift factory is a subsidiary of Tavol Group,which has Machining, Riveting,Stamping,Forging,Electrical Processing,Heat Treatment,Painting, Precision Mold Manufacturing and Other Processing Capabilities. Mainly Design, Develop and Manufacture 2ton-10ton Diesel Forklifts ,1ton -5ton Electric Forklifts, 2ton to 4ton Dual LPG Forklift,Off-Road Forklift,Electric Stacker Etc.
Certification
Package and Delivery
Before leaving the factory, TAVOL usually carries out strict inspection on the forklift to ensure the transportation safety of the forklift. This includes checking mechanical components,engine,braking systems,etc.
Shipping: Once the forklifts are packed and inspected, they are ready for shipment. Depending on the distance, region, country, customer requirements and other factors, forklifts can be transported to the destination by rail,sea,air or other customer requirements.
