1-2ton Electric forklift
Tavol electric forklift with more than 20 years manufacturing and export experience.
Lithium Battery with 5 years long warranty,with longer lifespan and fast charging.
Standard battery after full charging can work continuously for 5-6 hours
Battery capacity can customized according to your working time.
Fast delivery time(5-7 working days),accept OEM and ODM service
Compact design for tight spaces.
Suitable for diverse environments(food processing, pharmaceuticals, electronics)due to clean operation
Meet stringent emissions standards(EPA,EU Stage V)
Product Details
Our 2-ton electric forklift truck is engineered to revolutionize your material handling operations with exceptional power, fuel efficiency, and durability. Designed for demanding industrial environments, this heavy-duty forklift delivers superior performance while reducing operational costs and maximizing productivity. Whether you're working in warehouses, construction sites, or manufacturing facilities, this reliable diesel-powered forklift ensures smooth and efficient load handling.

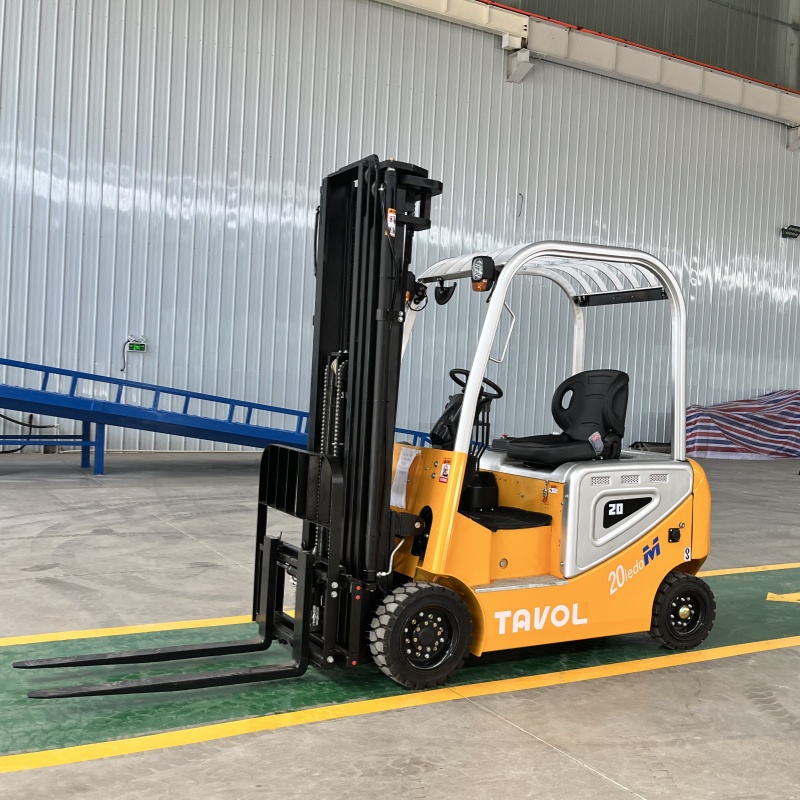

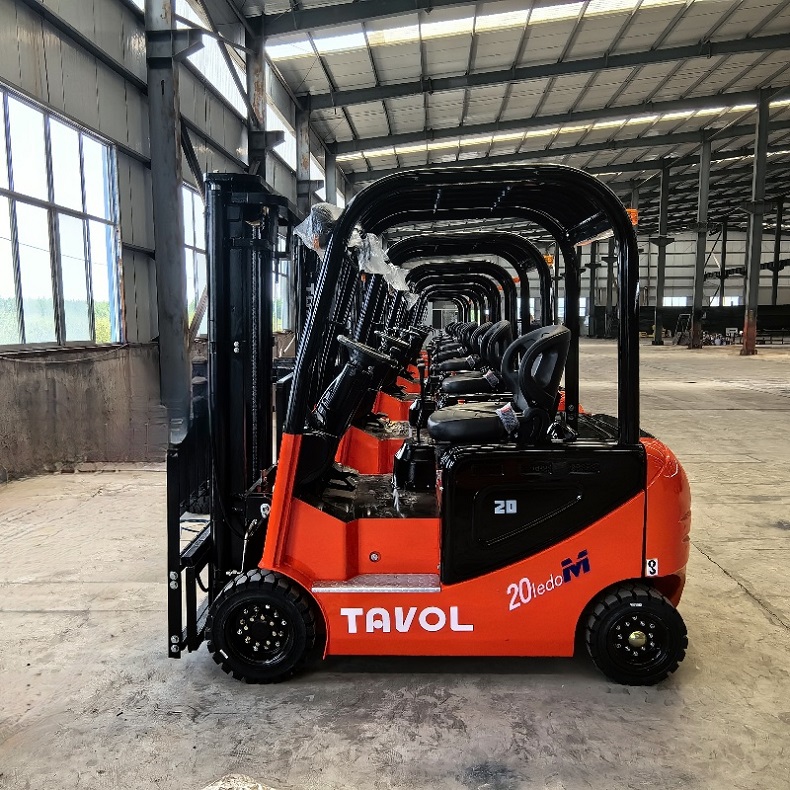

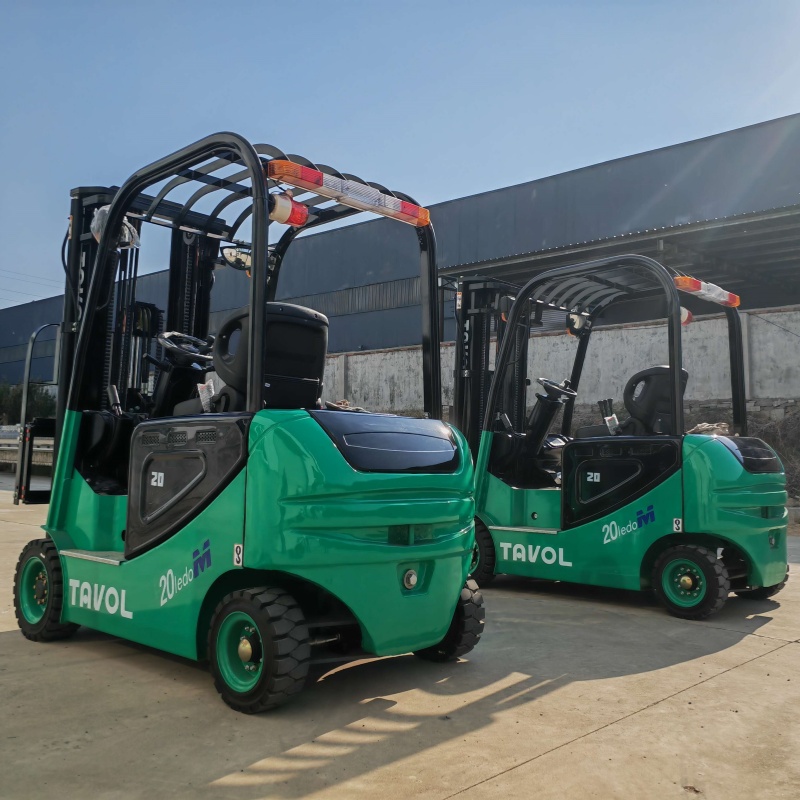

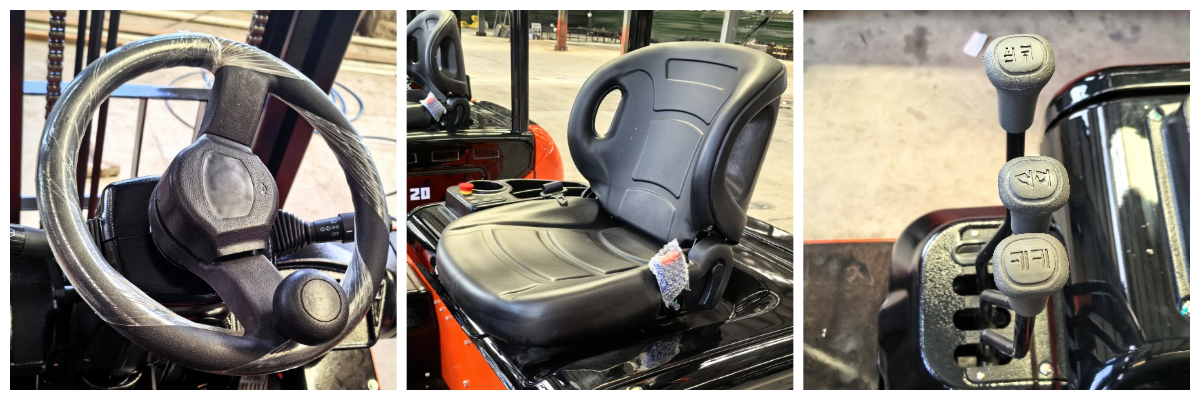

Appearance:
Parameter
| Model | CPD 20 |
| Rated Loading Capacity(kg) | 2000 |
| Load center(mm) | 500 |
| Drive Form | 76.8V/205AH |
| tyre type | solid tyre |
| Wheel Base(mm) | 1550 |
| Wheel distance(Front /Back) | 945/880 |
| Front Overhang(mm) | 325 |
| Mast Tilt Angle(Forward and Backward) | 5/10 |
| Lifting Height(mm) | 3000 |
| The door frame overall height | 2110 |
| Maximum height during operation | 4055 |
| Height of roof guard | 2110 |
| Fork size | 40*100*1070mm |
| Travel speed (Full/Empty load)(km/h) | 12/14 |
| Maximum climbing angle | 15/20 |
| Self-weight | 2850 |
| Walking motor | 5KW |
| Pump motor | 5kw |
| Tyre size (front/rear) | 18&7-10 15*4 2\1-8 |
Optional:
1. China top brand lithium battery,80V/150Ah,76.8V/205Ah,76.8V/280Ah,
76.8V/350AH,80V/525AH,lead acid battery optional,water automatic filling system is poptional;
2.Mast optional: 3/4m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.
3.Forks: 1070/1220/1370/1520/1670/1820/1970mm
4.Transmission: Automatic/manual;
5.Tire: pneumatic/Solid/non-mark solid;
6. Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..
7. Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc.
Service Overseas

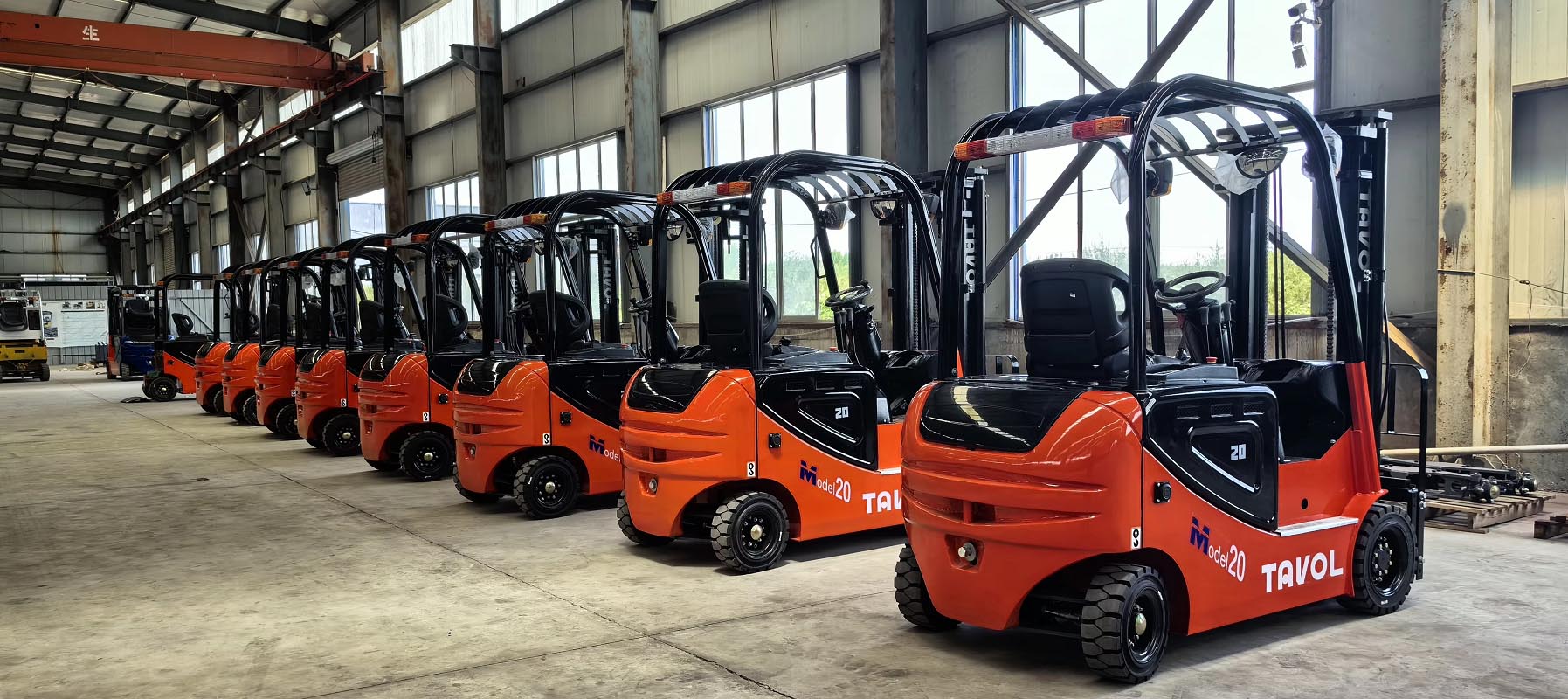

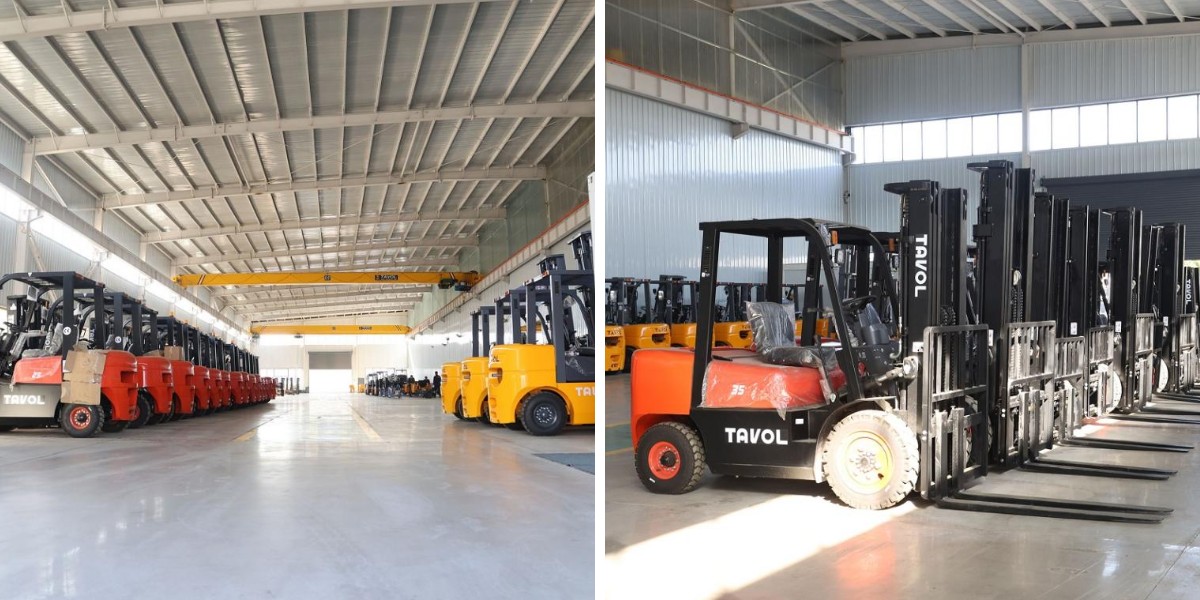

Our Factory
TAVOL Group was founded in 2011 and is located at the foot of Mount Tai. A Chinese material handling equipment manufacturing brand to help your career rise. The main design, development and manufacture of 1-10 tons diesel forklift, 1-3.5 tons electric forklift,1-4 tons dual gas dual gasoline forklift, lifting height of 3-6 meters; High-altitude lifting equipment.
Certification

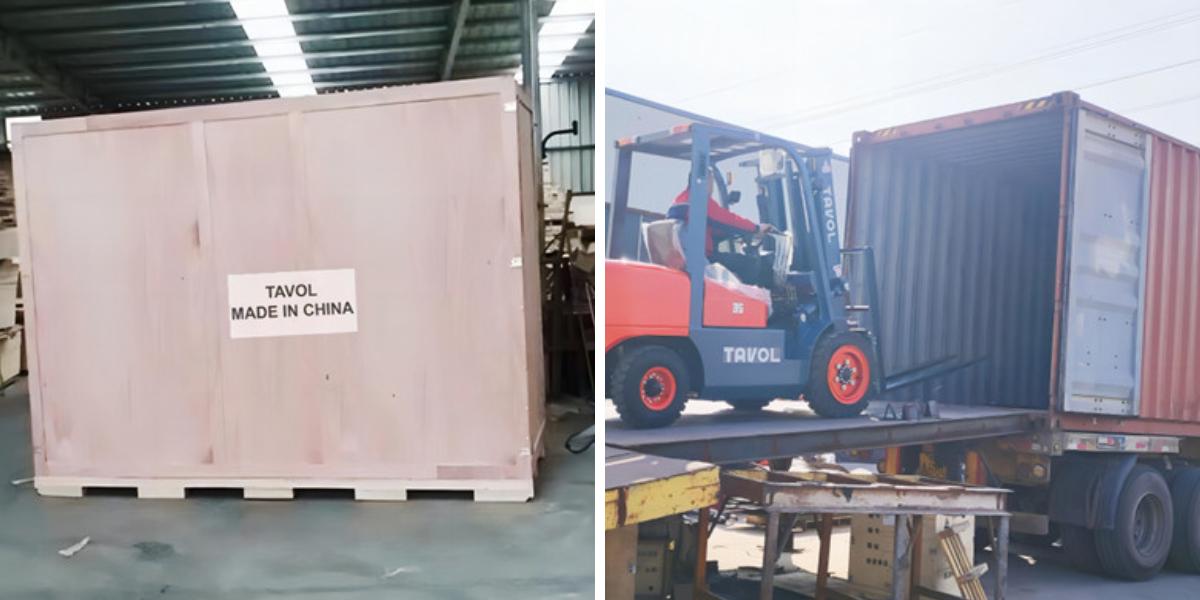

Package and Delivery
Before leaving the factory, TAVOL usually carries out strict inspection on the forklift to ensure the transportation safety of the forklift. This includes checking mechanical components,engine,braking systems,etc.
Shipping: Once the forklifts are packed and inspected, they are ready for shipment. Depending on the distance, region, country, customer requirements and other factors, forklifts can be transported to the destination by rail,sea,air or other customer requirements.
Email:sls05@tavolgroup.com Mob/Wechat:+86-15244113069
