Electric Forklift 1ton 2ton 2.5ton 3ton 3.5ton with 4.5m Lifting

1. Tavol mechanical All models support customization.

2. Our products have been sold to dozens of countries around the world and have been recognized and praised by customers. The products will be developed and upgraded according to different market needs to provide more efficient products and services to countless partners.

3. Complete certificates applicable to environmental emission requirements of various countries.

4. We are online 24 hours a day to provide you with service and help at any time.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Information

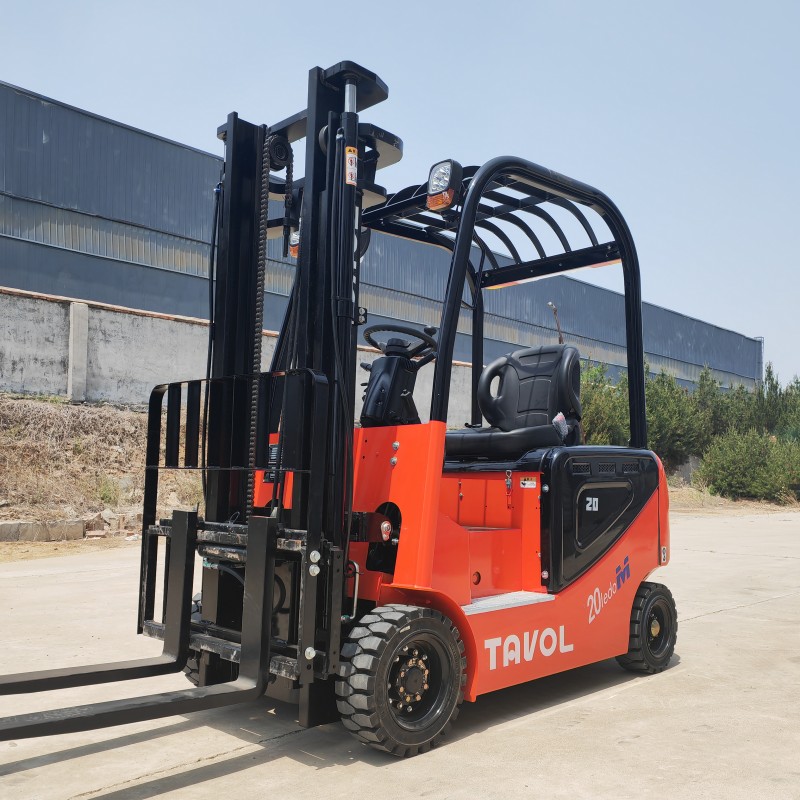

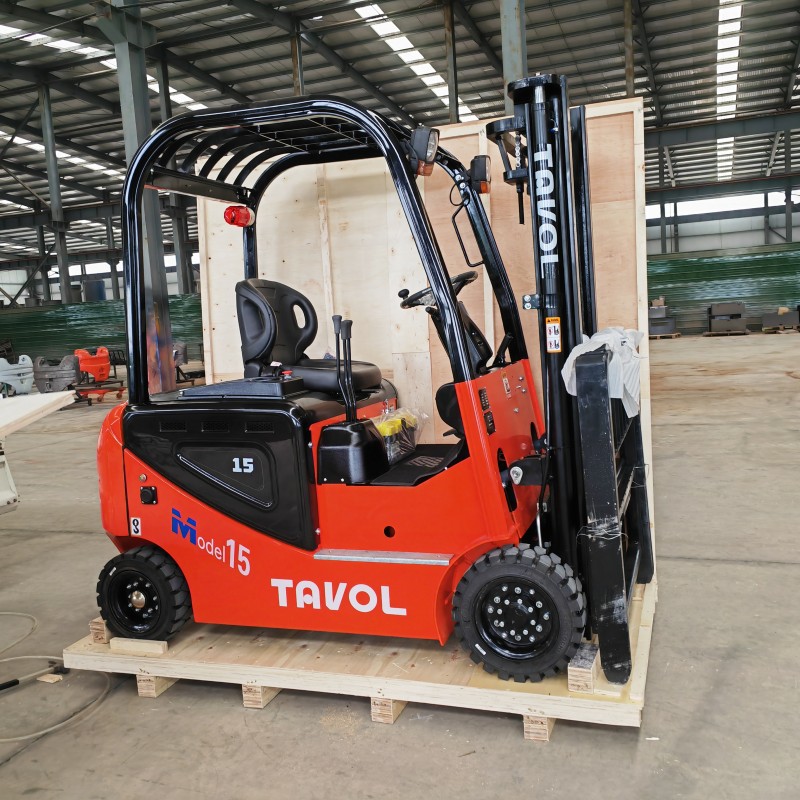

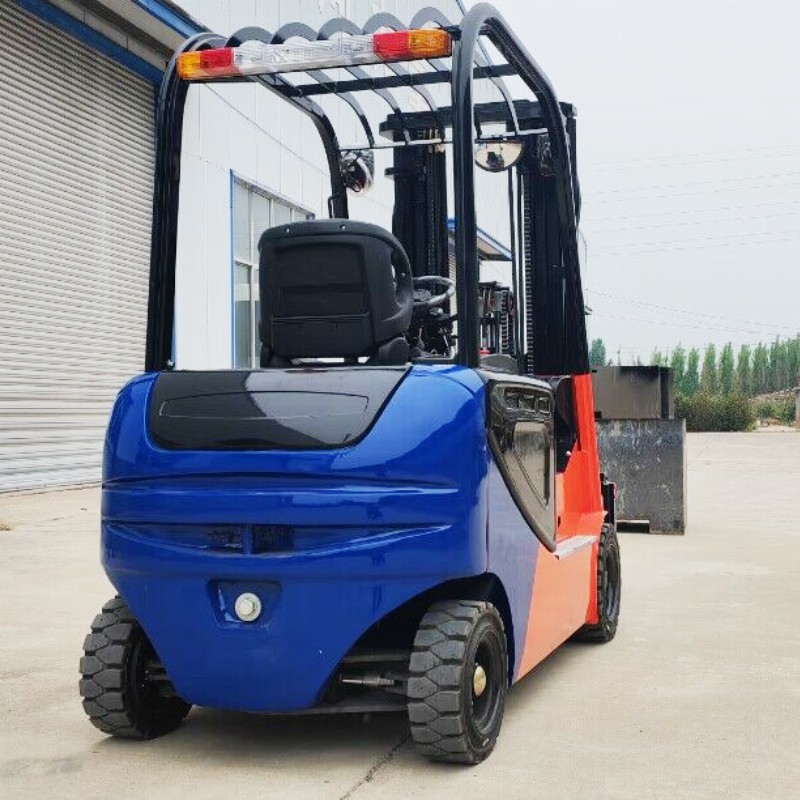

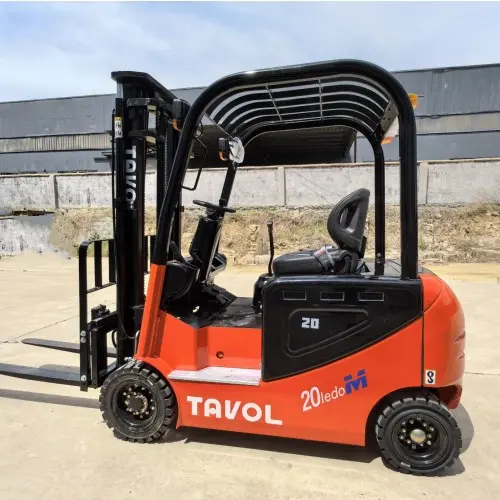

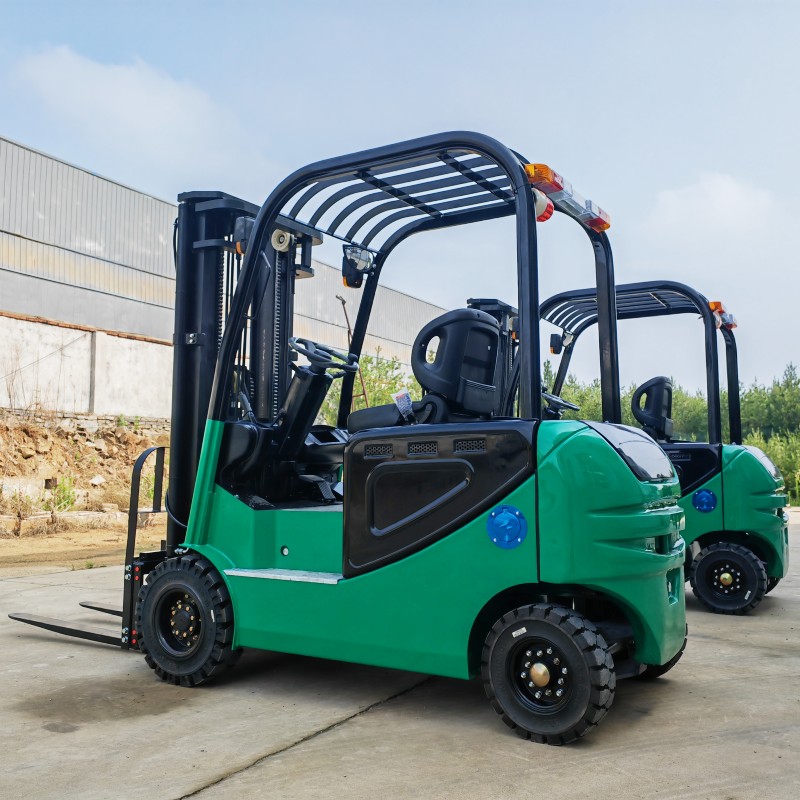

Mini Electric Forklift With Battery Full Stacker Machine 1ton 1.5 Ton 2 Ton 2.5 Ton 3 Ton 3.5 Ton Forklift Lifter Battery Forklift

Boost warehouse productivity with our CE-certified mini electric forklifts and full stackers, available in 1T, 1.5T, 2T, 2.5T, 3T, and 3.5T capacities. Featuring lithium-ion/lead-acid battery options, these compact machines deliver 8-10 hours runtime with fast charging (2-3 hrs). Ideal for narrow aisles, they offer zero emissions, <65dB noise, and 3-stage mast lifts (up to 6m). Customizable with side shift, fork positioners, or AGV compatibility. 3-year core warranty and global spare parts support included. Request a free video demo today!

Key Highlights:

Compact & Agile: 1.1m turning radius for tight spaces.

Energy-Efficient: 15% lower power consumption vs. competitors.

Global Compliance: CE/ISO/ANSI standards.

Attachment-Ready: Clamps, rotators, etc.

Ideal for: Retail logistics, manufacturing, and cold storage.

Forklift color can be customized for free.

Product Specifications

Model	CPD10	CPD15	CPD20	CPD25	CPD30	CPD35
Loading Capacity(kg)	1000	1500	2000	2500	3000	3500
Load Center Distance(mm)	500	500	500	500	500	500
Drive Form	Battery
Fork Lifting Height(mm)	3000	3000	3000	3000	3000	3000
Length(Including Fork)(mm)	3050	3150	3300	3400	4120	4120
Width(mm)	1020	1096	1096	1096	1230	1230
Height(Door Frame Indented)(mm)	1847	2110	2110	2110	2105	2105
Max working Height(mm)	3957	4055	4055	4055	4270	4270
Wheel Base(mm)	1330	1550	1550	1550	1700	1700
Wheel Track(Front/Rear)(mm)	910\865	945\880	945\880	945\880	1000/970	1000/970
Front Overhang(mm)	308	325	325	325	465	465
Wheel Tyre(Front/Rear)	15*4 1\2-8	18&7-10 15*4 2\1-8	18&7-10 15*4 2\1-8	18&7-10 15*4 2\1-8	28*9-15-14PR/6.50-10-10PR	28*9-15-14PR/6.50-10-10PR
Self Weight(kg)	1800	2650	2850	3200	4400	4650
Fork Width(mm)	100	100	100	100	122	122
Fork Thickness(mm)	30	40	40	40	45	45
Standard Fork Length(mm)	1070	1070	1070	1070	1070	1070
Battery (Voltage/Capacity)	60v\120ah	76.8V/160AH	76.8V/210AH	76.8V/205AH	76.8V/205AH	76.8V/205AH

Optional

1.Lead-acid batteries, lithium batteries;

2.Optional side shifter, fork positioner and other attachments;

3.Standard 2-stages 3000mm mast, optional 2-stages and 3-stages full free 4500mm-7500mm mast;

4.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;

5.Standard pneumatic tire, optional solid tire.


Standard Configuration	Side Shift	Side Shift and Fork Positioner

Standard 2-stages Mast	2-stages Full Free Mast	3-stages Full Free Mast

Product Detailed Information

Every component of the forklift, from the core power system to the smallest fasteners, has been strictly selected and quality controlled.

As a key equipment in the field of industrial logistics, the reliability of the forklift is directly related to production efficiency and operational safety, so its manufacturing process reflects the ultimate pursuit of details.

At the power system level, whether it is the turbocharger of the diesel engine, the high-pressure common rail injection system, or the lithium battery module and BMS management system of the electric forklift, they all adopt mature solutions that have passed tens of thousands of hours of endurance testing. Key hydraulic components such as plunger pumps and multi-way valves in the hydraulic system must have their matching accuracy controlled at the micron level to ensure smooth lifting without shaking.

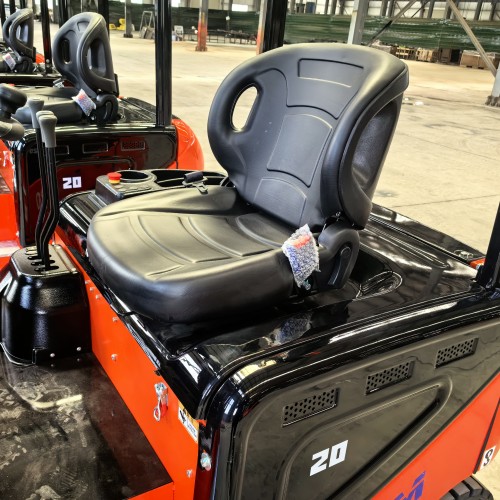

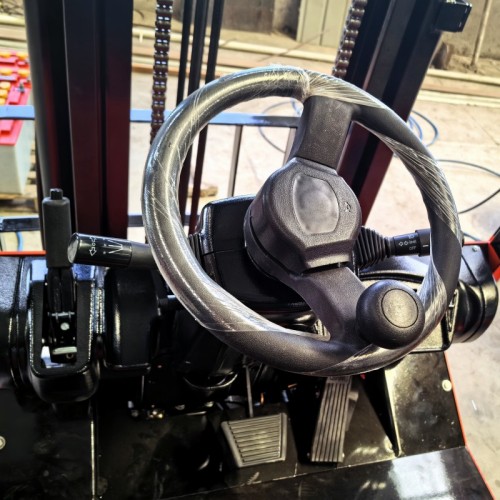

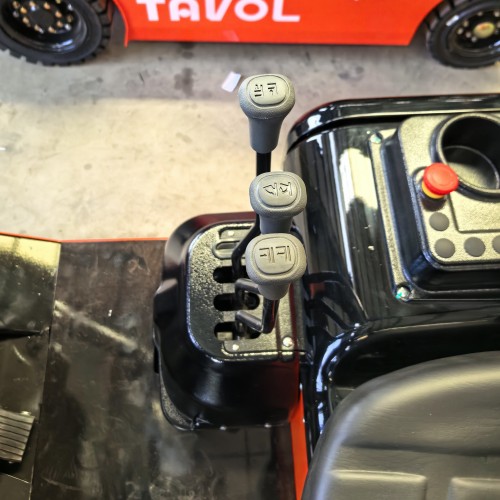

Operating Systom	Steering Wheel	Comfortable Seat

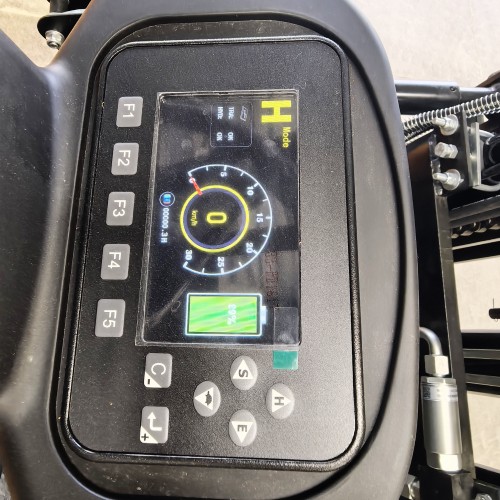

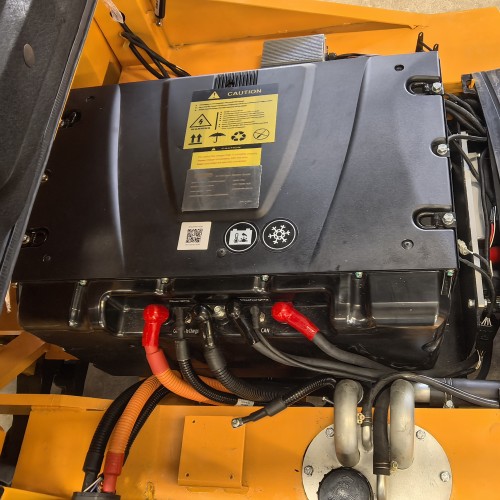

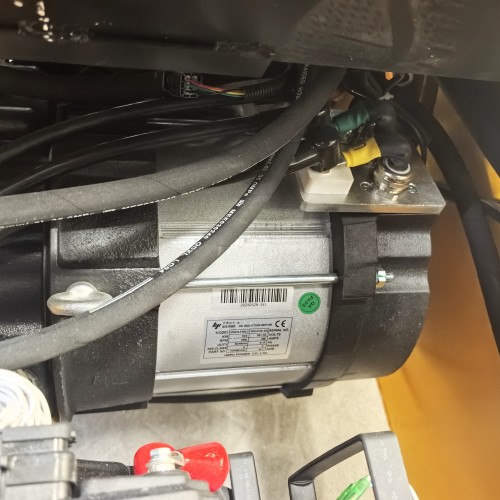

Display Dial	Lithium Battery	AC Induction Motor

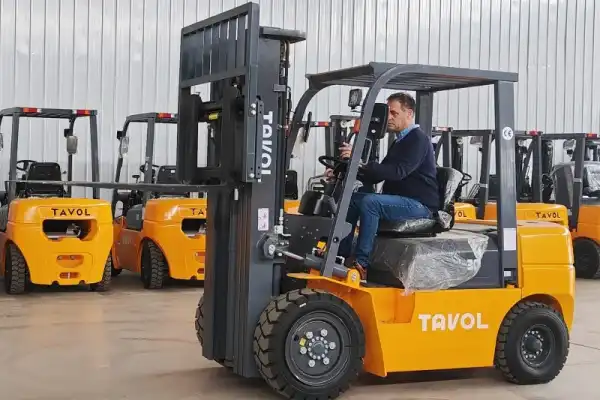

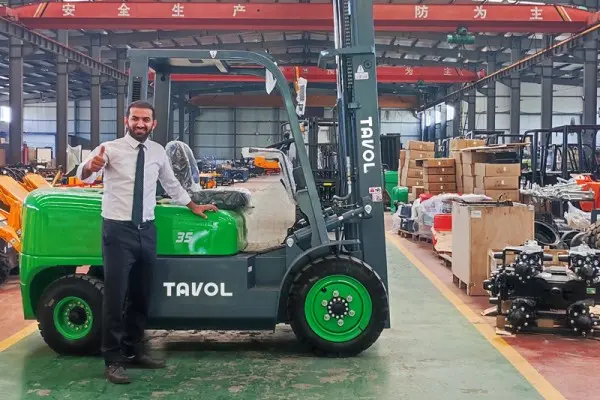

Successful Cases in the World

With global sales exceeding 10,000+ units, our forklifts are helping warehousing and logistics on five continents! Our quality footprint is spread across 60+ countries including the United Kingdom, France, Italy, Poland, Czech Republic, Bulgaria, Romania, Georgia, Turkey, Brazil, Chile, Argentina, Peru, Mexico, Belize, Colombia, Australia, the United States, Algeria, the United Arab Emirates, Saudi Arabia, Indonesia, Ghana, Guinea, South Africa, etc. Mutual benefit and common development.

Ten thousand lifts, ten thousand trusts. Our forklifts are becoming the tireless porters of the global village. Whether it is the extremely cold Nordic warehouses, the hot Middle Eastern construction sites, or the dust-free workshops of the precision electronics industry, we provide full-scenario material handling solutions.

Contact Us

Daisy, Whatsapp:+86 16226686777, E-Mail: sls03@tavolgroup.com, Wechat: +86 15253929653(Phone)

business card.jpg

Forklift Attachment

We can customize and install various attachments like rotator, hydraulic bucket, paper roll clamp, carton clamp, block clamp, bag clamp, bale clamp, steel pipe clamp, fork clamp, single double pallet handlers, hinged fork, etc.

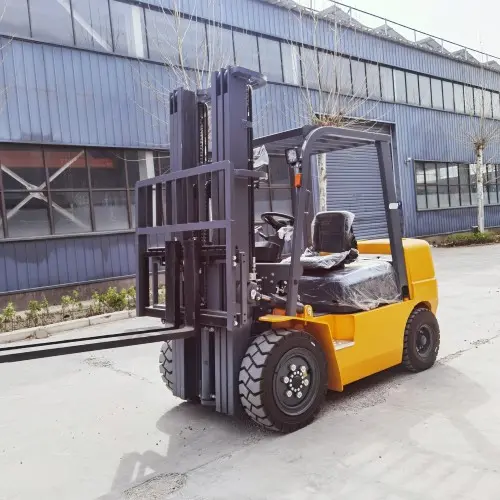

Diesel Forklift 3 Ton
