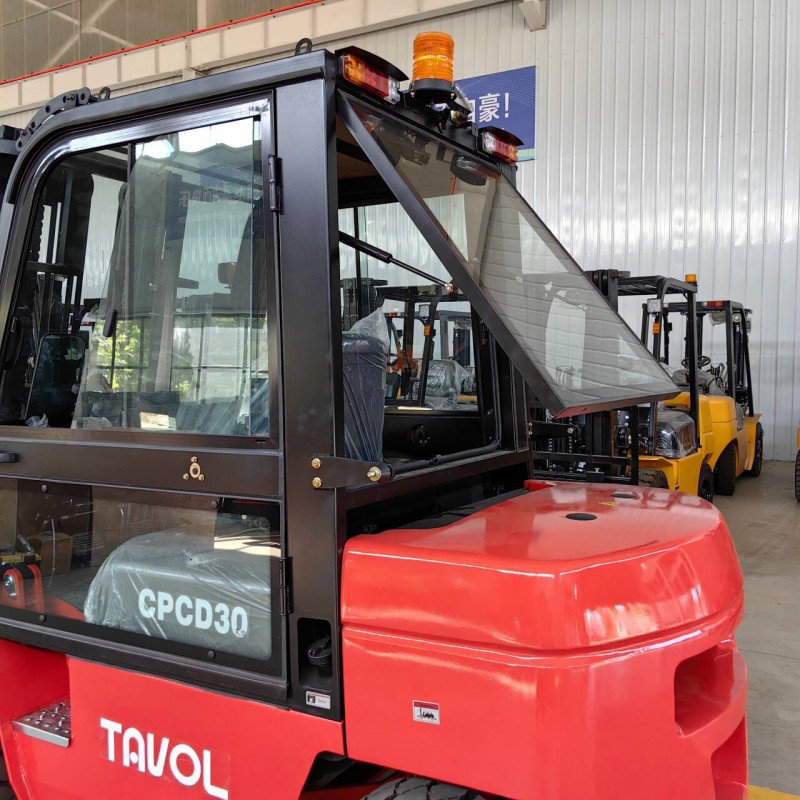

Diesel Forklift 2 Ton 3 Ton 3.5 Ton with Closed Cab

1. Tavol mechanical All models support customization.

2. Our products have been sold to dozens of countries around the world and have been recognized and praised by customers. The products will be developed and upgraded according to different market needs to provide more efficient products and services to countless partners.

3. Complete certificates applicable to environmental emission requirements of various countries.

4. We are online 24 hours a day to provide you with service and help at any time.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Detailed Information

2 Ton 3 Ton 3.5 Ton Diesel Forklift with Closed Cabin – Euro 5 Engine | Hot Sale & Discount!

Upgrade your material handling with our 3-ton diesel forklift, featuring a spacious closed cabin for all-weather protection, operator comfort, and enhanced safety. Powered by an advanced Euro 5 engine, this elevadora delivers high efficiency, low emissions, and superior performance in demanding environments like warehouses, ports, and construction sites. With a 2-3 ton lifting capacity, robust hydraulics, and durable construction, it ensures long-term reliability. Limited-time hot sale with big discounts! Don’t miss this chance—contact us now for the best price on top-quality forklifts!

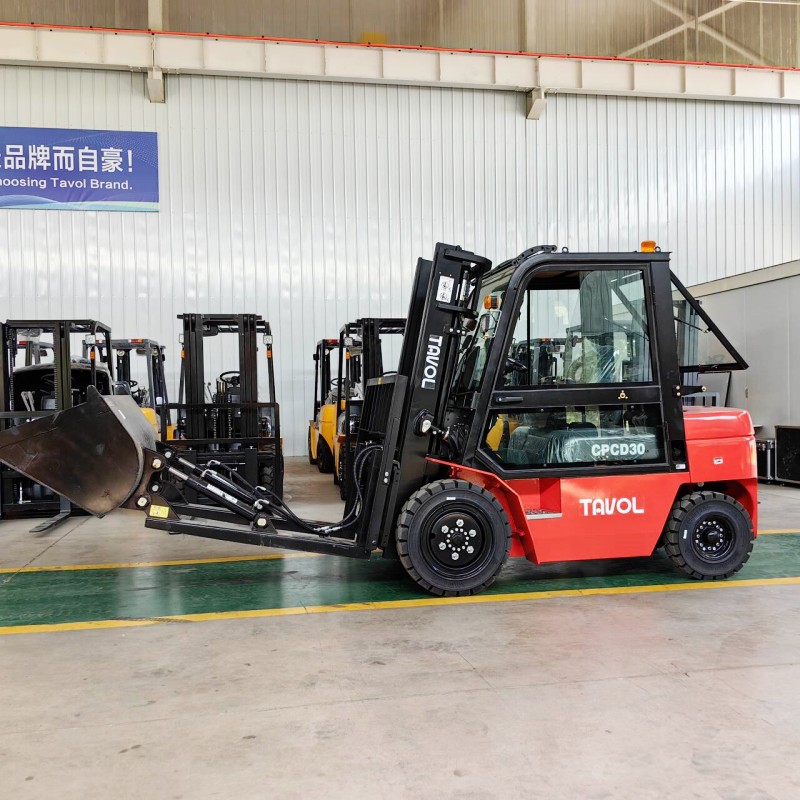

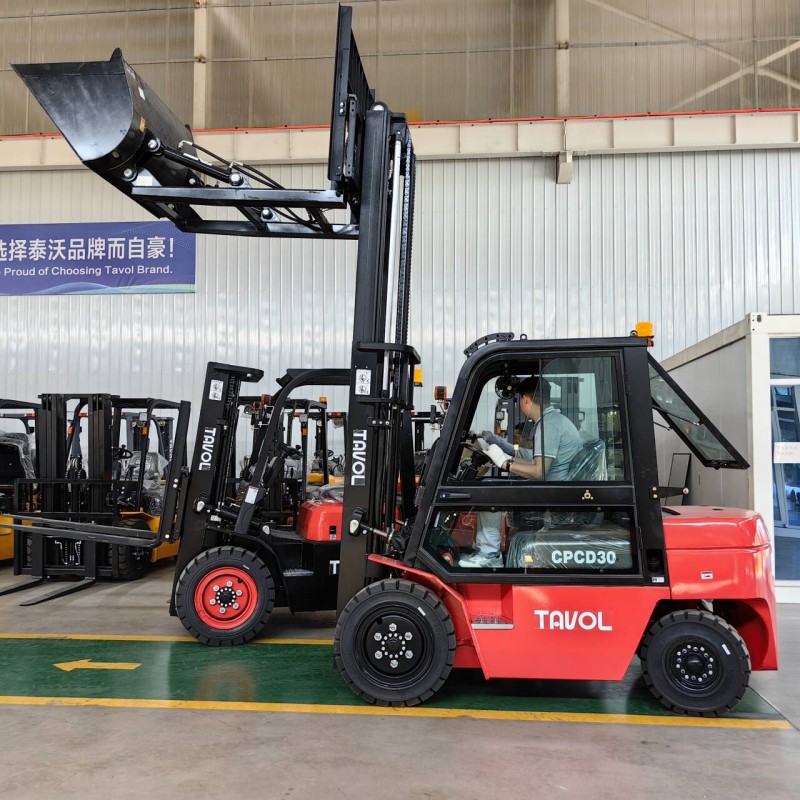

Diesel Forklift 3 Ton

Product Specifications

Model	CPCD20	CPCD25	CPCD30	CPCD35
Rated Loading Capacity(kg)	2000	2500	3000	3500
Load Center Distance(mm)	500	500	500	500
Drive From	Diesel	Diesel	Diesel	Diesel
Fork Lifting Height(mm)	3000	3000	3000	3000
Mast Tilt Angle(Forward and Backward)	6°/12°	6°/12°	6°/12°	6°/12°
Min. Turning Radius(mm)	2450	2450	2530	2540
Length (Including Fork)(mm)	3605	3605	3970	4000
Witdth(mm)	1160	1160	1230	1230
Height(Door Frame Indented)(mm)	2095	2095	2110	2110
Max working Height(mm)	4080	4080	4270	4270
Front Overhang(mm)	451	451	465	465
Wheel Base(mm)	1640	1640	1775	1775
Front Wheel Track(mm)	970	970	1000	1000
Rear Wheel Track(mm)	970	970	970	970
Front Wheel Tyre	7.00-12	7.00-12	28*9-15	28*9-15
Rear Wheel Tyre	6.00-9	6.00-9	6.50-10	6.50-10
Self Weight(kg)	3320	3600	4290	4700
Standard Fork Length(mm)	1070	1070	1220	1220
Fork Width(mm)	122	122	122	122
Fork Thickness(mm)	40	40	45	45
Engine Rated Power(kw)	36.8	36.8	36.8	36.8
Engine Speed At Rated Power(rmp)	2500	2500	2500	2500
Engine Maximum Torque(Nm)	157	157	165	165
Engine Speed At Maximum Torque(rpm)	1800	1800	1600-1800	1600-1800
Transmission Form	Hydraulic	Hydraulic	Hydraulic	Hydraulic

Optional

1.Xinchai engine, Quanchai engine; optional Japan Isuzu, Mitsubishi engine and others;

2.Optional side shifter, fork positioner and other attachments;

3.Standard 2-stages 3000mm mast, optional 2-stages and 3-stages full free 4500mm-7500mm mast;

4.Standard 1220mm fork, optional 1370mm, 1520mm, 1670mm and 1820mm forks;

5.Mechanical and Automatic transmission can be choosen;

6.Standard pneumatic tire, optional solid tire.


Japanese Isuzu Diesel Engine	Japanese Mitsubishi Diesel Engine	Chinese Xinchai/Quanchai Diesel Engine

Standard Configuration	Side Shift	Side Shift and Fork Positioner

Standard 2-stages Mast	2-stages Full Free Mast	3-stages Full Free Mast

Product Detailed Information

Every component of the forklift, from the core power system to the smallest fasteners, has been strictly selected and quality controlled.

As a key equipment in the field of industrial logistics, the reliability of the forklift is directly related to production efficiency and operational safety, so its manufacturing process reflects the ultimate pursuit of details.

At the power system level, whether it is the turbocharger of the diesel engine, the high-pressure common rail injection system, or the lithium battery module and BMS management system of the electric forklift, they all adopt mature solutions that have passed tens of thousands of hours of endurance testing. Key hydraulic components such as plunger pumps and multi-way valves in the hydraulic system must have their matching accuracy controlled at the micron level to ensure smooth lifting without shaking.

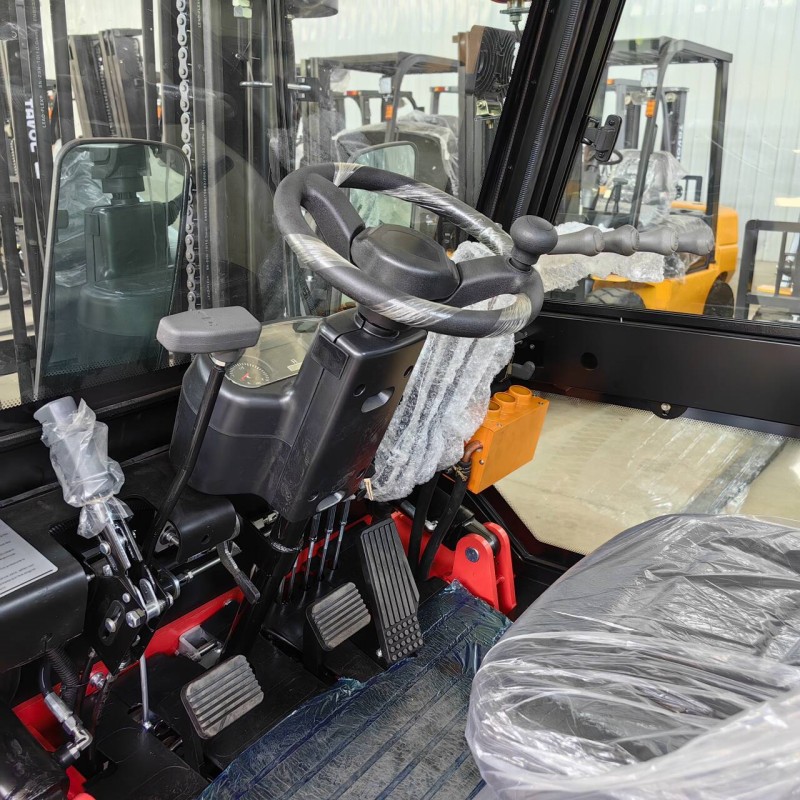

Operating Systom The hydraulic power-assisted operating system is light and labor-saving, improves efficiency, provides precise control and high stability.	Steering Wheel Hydraulic power steering, easy to operate, reduces fatigue, precise steering, sensitive response, and optimized ergonomics.	Comfortable Seat Toyota seats, ergonomic design, reduced fatigue, multi-dimensional adjustment, all-weather durability.

Bright LED Light Forklift LED lights have become the standard configuration of modern forklift lighting systems due to their high efficiency, energy saving, ultra-long life and excellent reliability.	Powerful Diesel Enigne Super strong power output, ultra-low fuel consumption, weather resistance performance 30℃ cold start to 50℃ high temperature continuous operation, and ultra-long service life.	Pneumatic tires Excellent shock absorption and cushioning performance, superb ground adaptability, high load-bearing capacity and high-speed stability

Successful Cases in the World

We have transported 10,000+ forklifts to customers around the world and have established long-term cooperative relationships with customers. We visit customers from time to time every year to understand their needs for products and problems encountered during use, and solve them in a timely manner. Customers also visit our factory normally to learn about the production process and product knowledge. Mutual benefit and common development.
